Outdoor DMX512 distributor 8 channels

loading

Share to:
twitter sharing button
facebook sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button

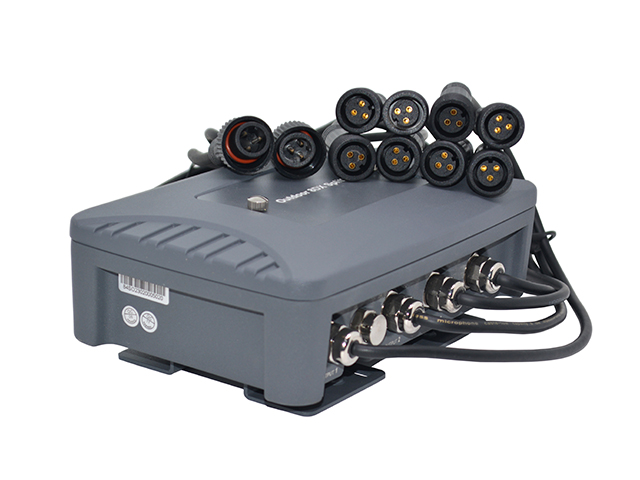

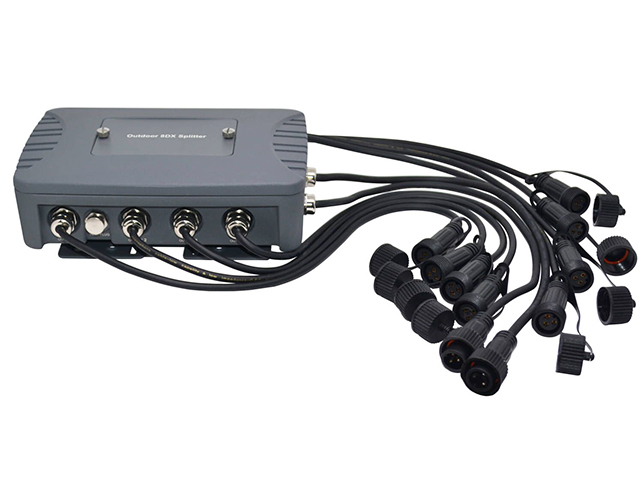

Outdoor DMX512 distributor
DMX512 Signal Amplifier
DMX signal amplifier
Outdoor DMX512



Availability:
  • Outdoor DMX512 distributor 8CH

  • AVQ

* DMX512/1990 Standard


* Eight-way DMX splitter with one input


* Independent input and output signal(include earth cable of signal)


* Each input/output port is a waterproof XLR connector,



and each DMX output port has an independent driver.


LED indicators indicate signal status


* Cast aluminum material, weatherproof, UV resistant


* Power input: AC88~ 256V 50/60Hz


* Dimension: 225mm×150mm×85 mm


* Net weight: 2.2kg (not include AC&DMX cable)


Product Description:

Outdoor DMX512 8-Channel Distributor

A robust and reliable DMX signal distributor designed for outdoor applications.

This Outdoor DMX512 8-Channel Distributor is a versatile tool for expanding DMX networks. It offers a reliable and efficient way to distribute DMX signals to multiple lighting fixtures.

Product Parameters

Parameter

Value

Standard

DMX512/1990

Channels

8-way DMX splitter

Connectors

Waterproof XLR connectors

Housing Material

Cast aluminum

Power Input

AC88-256V, 50/60Hz

Dimensions

225mm x 150mm x 85mm

Net Weight

2.2kg

Features

Independent signal, LED indicators, weatherproof


Key Features and Benefits

  • DMX Signal      Distribution: Distributes      DMX signals to up to 8 devices.

  • Waterproof      Design: Suitable for outdoor      use.

  • Independent      Signals: Each output operates      independently, preventing interference.

  • LED      Indicators: Provide visual      confirmation of signal status.

  • Durable      Construction: Cast      aluminum housing ensures durability.

  • Wide Voltage      Input: Accommodates various      power sources.

Applications

  • Expanding DMX      Networks: Increase the number of      DMX devices in a lighting system.

  • Outdoor      Lighting: Ideal for outdoor      events, theme parks, and architectural lighting.

  • Rental      Applications: A versatile      tool for rental companies.

This Outdoor DMX512 8-Channel Distributor offers a reliable and efficient solution for expanding your DMX network.

Additional Features to Consider:

  • Isolation: Each output is electrically isolated from the      others, preventing ground loops.

  • Compact      Design: Easy to install and      integrate into existing lighting systems.

By highlighting these features, you can effectively communicate the benefits of the product to potential customers.
