Product Description:

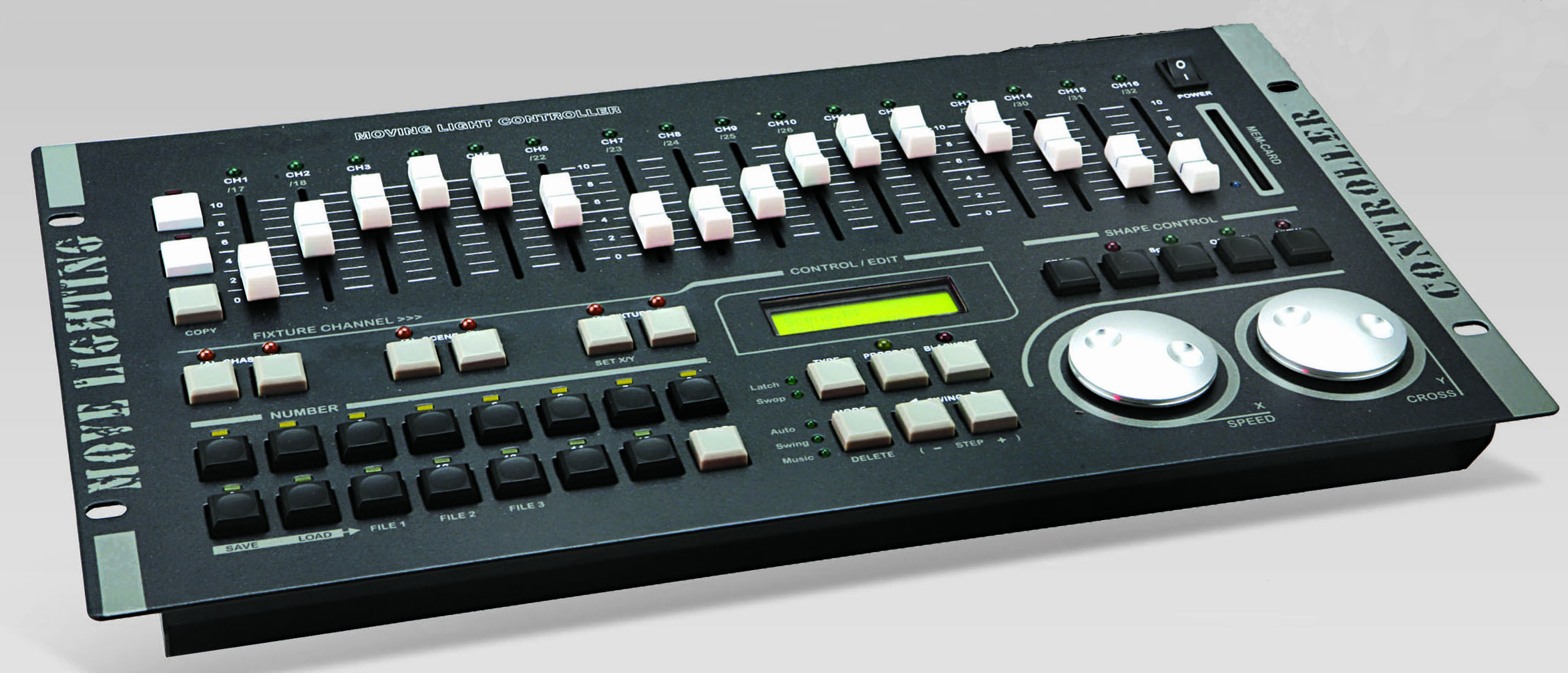

MAX384 MOVING LIGHT CONTROLLER
A versatile DMX controller designed for professional lighting applications.
This DMX controller offers a wide range of features, making it ideal for controlling multiple intelligent fixtures in various lighting setups.
Key Features and Benefits
Flexible Control: Control up to 30 intelligent fixtures with a maximum of 32 channels each.
Dynamic Channel Allocation: Assign DMX channels to fixtures dynamically.
Shape Generation: Create various shapes and patterns using the built-in shape generators.
Chase and Scene Programming: Preset and trigger chases and scenes for automated lighting sequences.
RDM Support: Supports RDM for bidirectional communication with fixtures.
Data Storage: Store controller data on a flash memory card.
This MAX384 DMX controller is a powerful tool for lighting designers and technicians who require precise control over multiple intelligent fixtures.
Additional Notes
Versatility: Suitable for a wide range of lighting applications, including stage lighting, concerts, and events.
User-Friendly: The backlit LCD display and intuitive interface make it easy to operate.
Reliable Performance: The controller is built to withstand the demands of professional lighting environments.
MAX384 MOVING LIGHT CONTROLLER:
DMX512/1990 standard, 384 DMX channels, output with optical isolated.
Up to 30 intelligent Fixtures may be connected with a maximum of 32 channels each.
Uses can allocate DMX channel to each intelligent Fixture dynamically.
The X/Y channel of different intelligent Fixtures can be controlled by modulation Wheel.
Up to 50 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8, etc.
30 Chases, up to 100 Steps each. Trigger mode selectable: Music synchronously, Auto, Manual speed.
2 Chases, 30 Scenes operated at the same time. At most 30 intelligent Fixtures can be selected simultaneously.
Flash mem-card slot is provided. each Flash mem-card can record the whole data of controller,
LCD display with backlight.
Power supply: AC 90-250V / 50-60Hz
Size: 485mm x 267mm x 85mm
