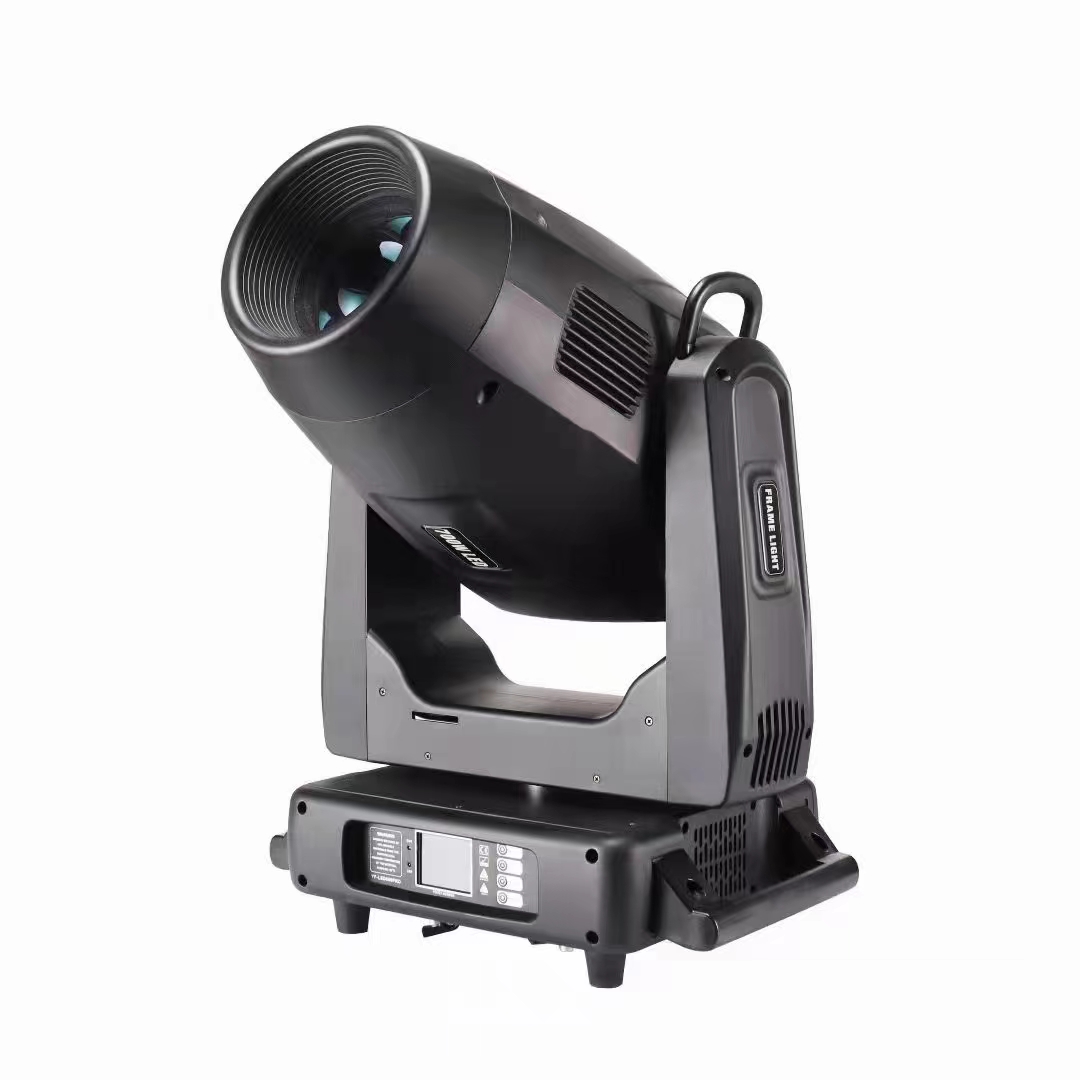

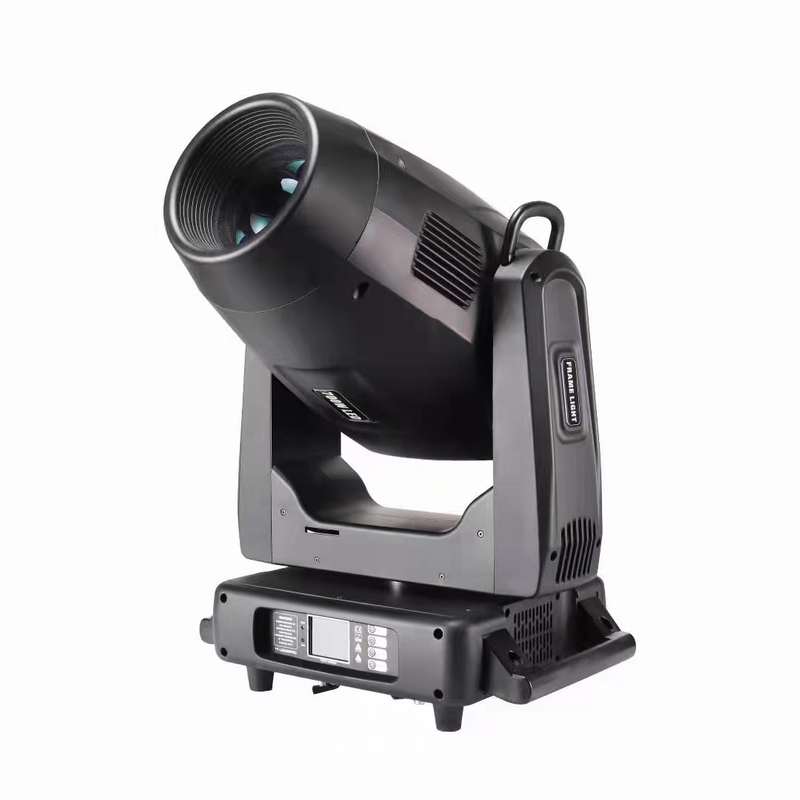

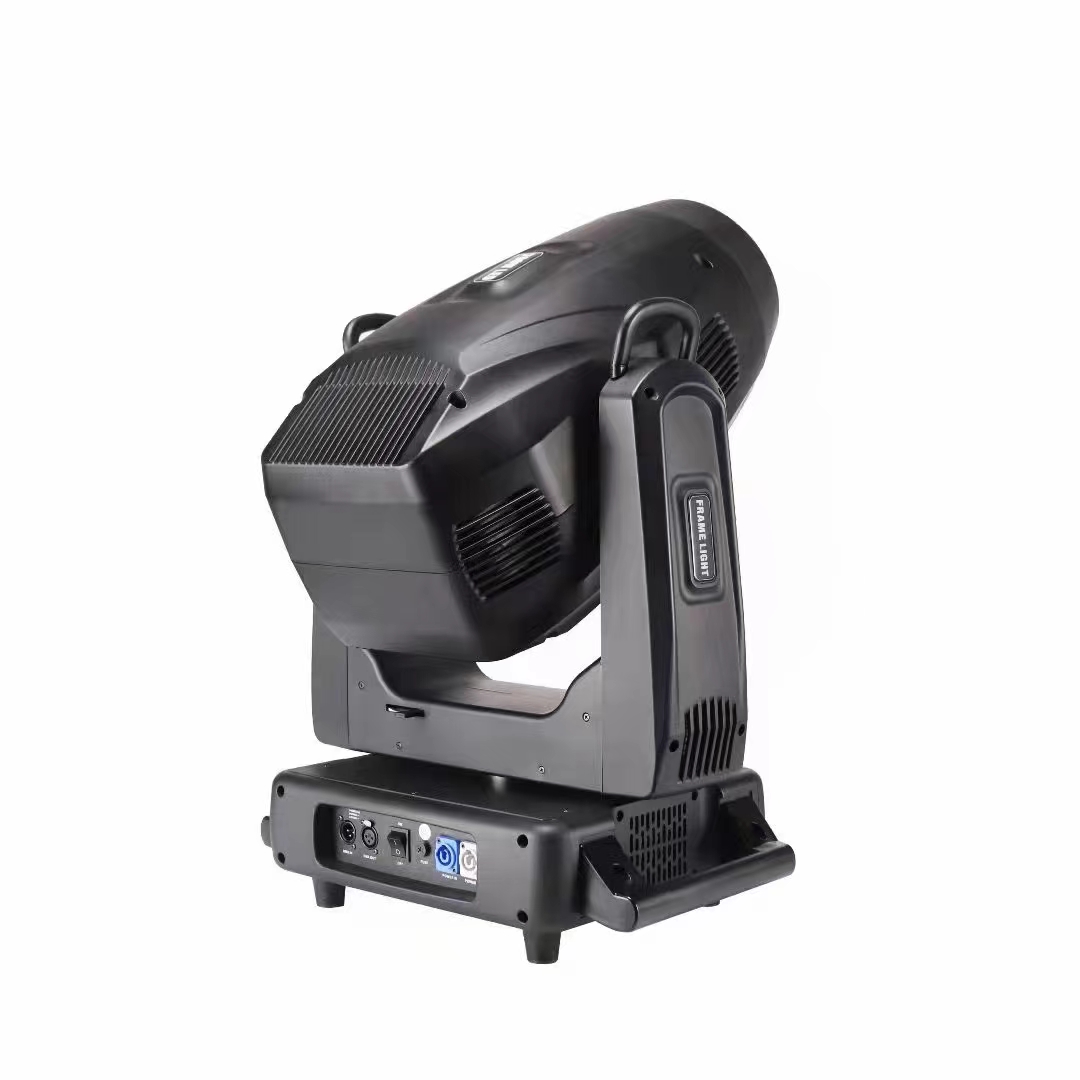

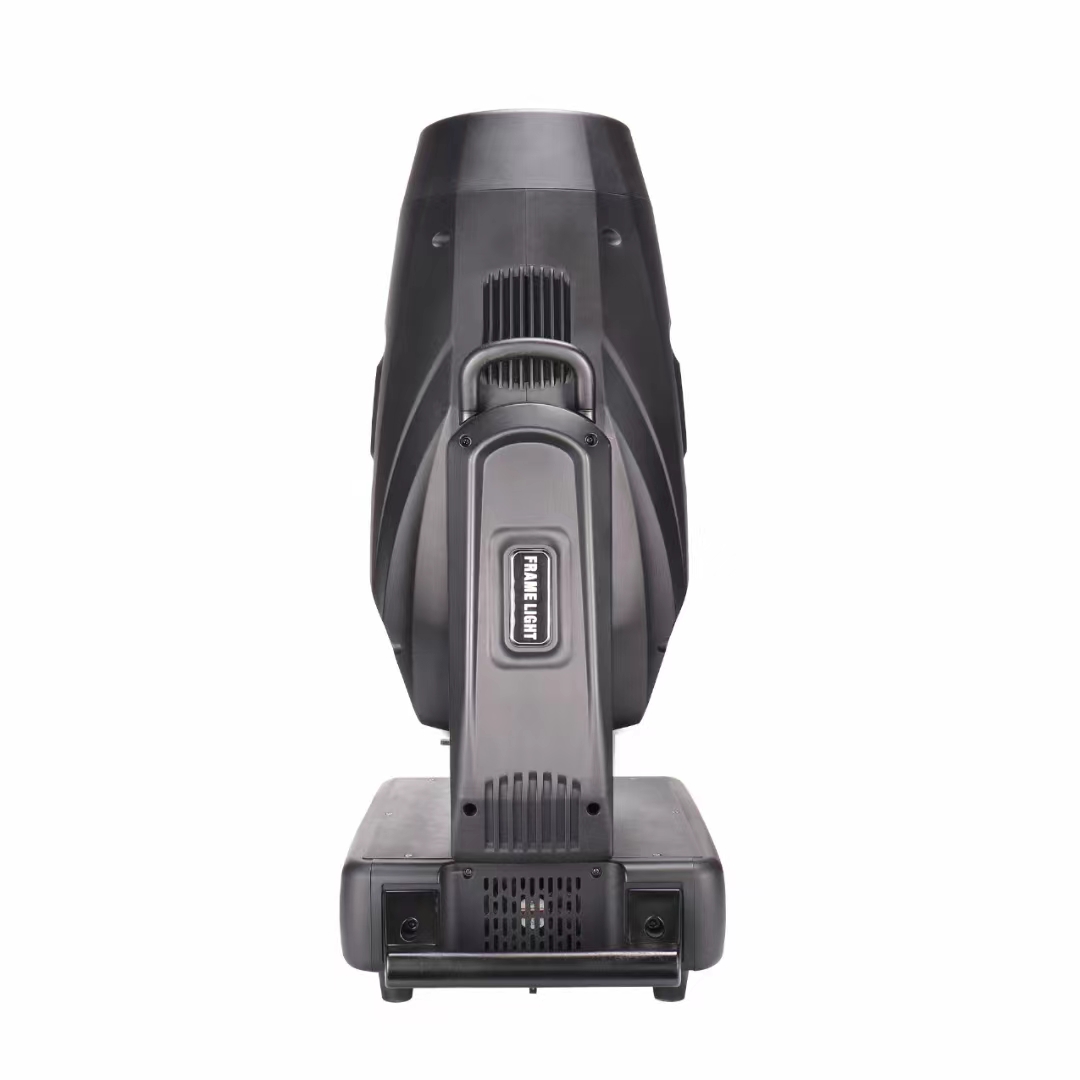

700W LED Spot Frame Moving Head Light QG-700SBW

Light Source

• Powerful LED: 650W white LED source for strong output.

• Long Lifespan: 20,000 hours of LED operational life.

• Accurate Color Rendering: CRI of 90 for true color representation.

• Cool White Light: 6800K color temperature for crisp illumination.

• Flexible Zoom: 4.5° to 50° linear zoom range for various beam angles.

Power Supply

• High Power: 700W total power consumption.

• Wide Voltage Range: 100-240V input, compatible with different power systems.

• Standard Frequency: Operates on 50/60 Hz frequency.

Optical System

• Precise Framing: Four groups of blades, adjustable in eight directions, offer multiple framing options.

• Static Gobo Wheel: Eight fixed gobos plus an open position.

• Rotating Gobo Wheel: Six rotating gobos plus an open position, interchangeable and indexable.

• Dynamic Animation: Animation wheel produces effects like flame or water.

• Vibrant Colors: One color wheel with seven colors plus open.

• Variable Color Temperature: Independent CTO unit allows linear color temperature adjustment.

• CMY Color Mixing: Independent CMY system enables smooth, limitless color mixing.

• Prism Effects: Includes three-facet and six-facet linear prisms.

• Automatic Focus: Automated focus system for sharp projections.

• Adjustable Iris: Motorized linear iris adjustment from 5% to 100%.

• Fast Strobe: Strobe effect with adjustable speed from 0 to 20Hz, 1 to 25 flashes per second.

• Frost Effect: Frost filter with three levels: heavy, medium, and light, offering 35°-65° diffusion.

Control

• Clear Display: LCD screen for easy menu navigation and settings.

• Multiple Control Options: DMX 512, RDM, Artnet (optional), auto-running, master/slave, sound active, and built-in programs.

• Flexible Channel Mode: Operates in 36-channel mode.

Connections

• Standard Data Connectors: 3-pin or 5-pin XLR connectors for data input and output.

• Reliable Power Connector: True One connector for power input.

Construction

• Durable Housing: Die-cast aluminum housing for strength and durability.

• Standard Color: Black housing color.

Package

• Net Weight: 38KG net weight of the fixture.

• Gross Weight: 42KG gross weight with packaging.

• Package Dimensions: 90.5x56x45.5CM package size.
