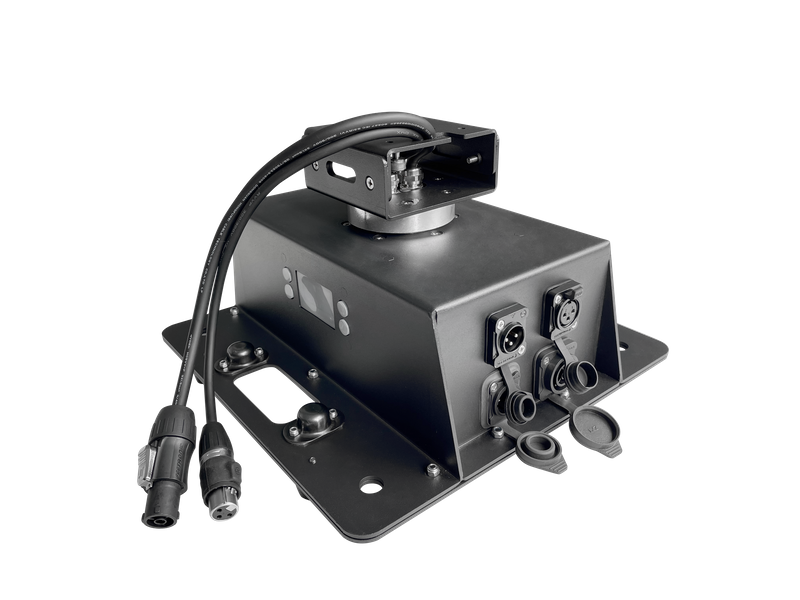

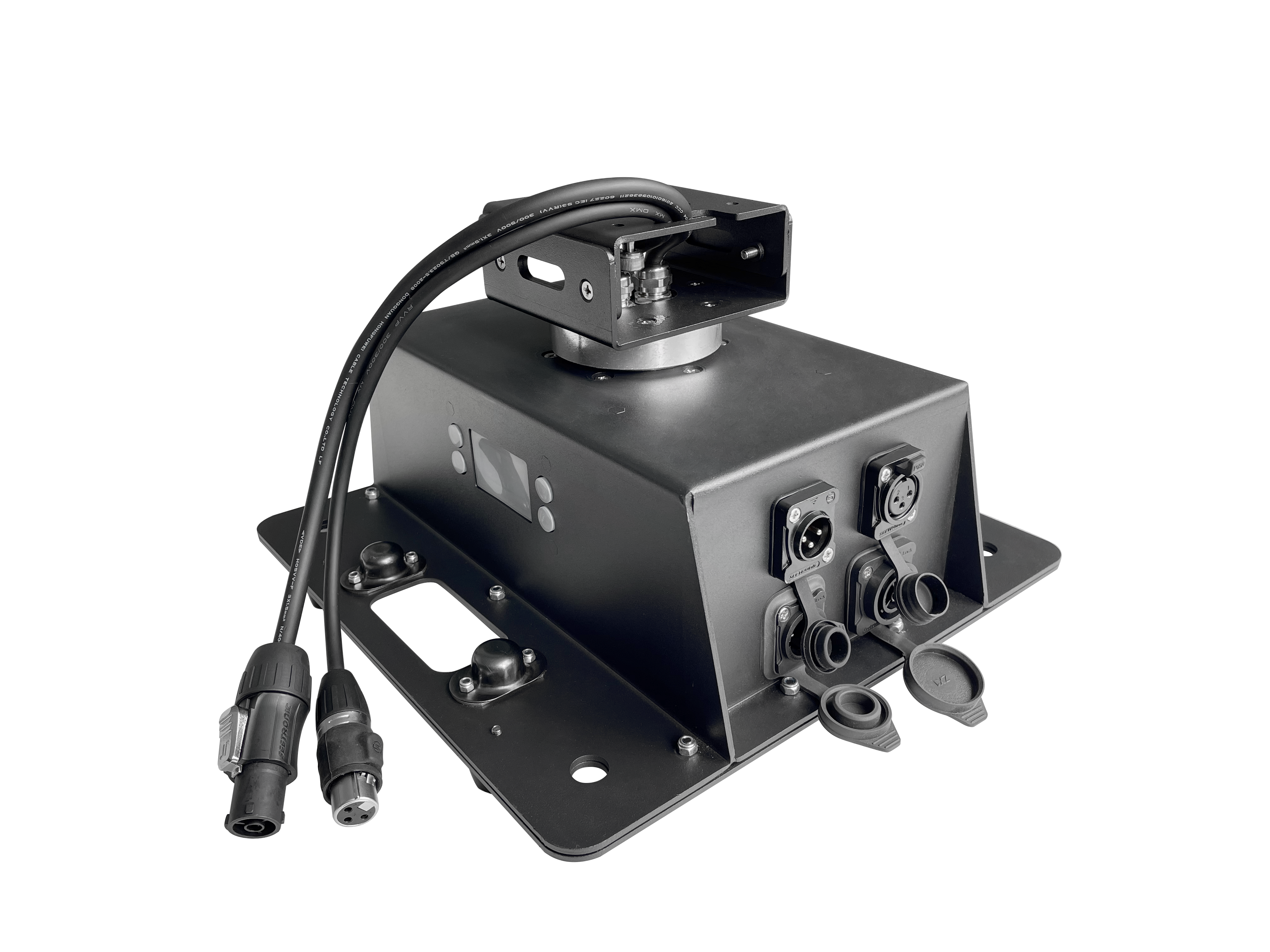

The Rotating X-axis Extender is a professional-grade kinetic motion platform designed to break the boundaries of traditional stage lighting. Engineered for lighting designers who demand more than fixed-point movement, this high-torque extension module adds a dynamic horizontal dimension to your existing fixtures. By enabling continuous, synchronized rotation across the X-axis, it transforms standard beam and wash lights into a sweeping, immersive visual experience. Whether integrated into a touring rig or a permanent nightclub installation, this extender provides the mechanical agility required to create complex mid-air geometries and high-energy "tornado" effects.
Infinite 360-Degree Rotation: Equipped with high-conductivity slip-ring technology to allow for non-stop horizontal spinning without cable tangling.
High-Torque Synchronized Motors: Features precision stepper motors that ensure perfectly timed movement across multiple units for flawless geometric patterns.
Universal Mounting Interface: Designed with a versatile structural frame that accommodates a wide range of moving heads, lasers, and strobe bars.
Seamless DMX512 Integration: Offers granular control over rotation speed, direction, and acceleration curves for cinematic visual transitions.
Industrial Build Quality: Constructed from reinforced steel and aerospace-grade aluminum to handle the centrifugal forces of high-speed rotation.
stage light X-axis Extender
AVQLIGHT
Imagine a stage where light no longer feels anchored to a single point. With the Rotating X-axis Extender, the air becomes a three-dimensional canvas. When you first unbox the unit, you are met with the cool, tactile reassurance of industrial-grade metal—a chassis built to withstand the rigors of heavy-state touring. There is a specific, professional weight to the components, signaling that this is not a toy, but a precision tool for serious production environments.
As the system powers on, the movement is hauntingly silent. You don't hear the clatter of cheap gears; instead, you experience the smooth, pressurized hum of a well-oiled machine. As you push the DMX fader, the fixtures mounted on the extender begin a coordinated dance, sweeping across the audience in a panoramic arc that feels both liquid and powerful. It’s the difference between a static light show and an environment that feels alive. For the designer, it offers a storytelling advantage—allowing you to create "momentum" in the room, pulling the audience’s gaze with the sheer kinetic energy of the rig. This extender is the secret weapon for those moments when a show needs to transition from "standard" to "spectacular."
The Rotating X-axis Extender is a masterclass in mechanical versatility. Its primary highlight is the integration of an advanced internal slip-ring system. This engineering feat allows power and DMX signals to pass through a rotating joint infinitely, meaning you never have to program "reset" movements into your show to untwist cables. Your lighting sequences can spin for hours, maintaining total signal integrity and constant power delivery.
Furthermore, the extender is designed with a "DIY" philosophy at its core. It is not limited to a single type of light. You can mount a row of lasers for a razor-sharp "scanning" effect, or a series of small beam lights to create a blooming "flower" of light that fills an arena. The precision of the 16-bit motor drivers ensures that if you program a stop at exactly 182 degrees, the unit hits that mark every single time, even after thousands of high-speed rotations. This level of repeatability is essential for professional time-coded shows where every millisecond of movement counts.
True stagecraft is about controlling space. The Rotating X-axis Extender acts as a force multiplier for your lighting plot, turning a linear row of lights into a multidimensional array. By adding this horizontal rotation, you can achieve "spatial wrapping"—where light beams seem to hug the contours of the venue. This is particularly effective in venues with low ceilings or wide floor plans where traditional vertical movement is restricted.
Velocity Control: The system supports variable speed curves, allowing for imperceptibly slow crawls for theatrical tension or rapid-fire spins for high-bpm dance music.
Geometric Synchronization: When multiple extenders are used in a line, the DMX control allows them to move in perfect phase or staggered offsets, creating "wave" patterns that ripple across the stage.
Centrifugal Stability: Every internal bearing is rated for high-load rotation, ensuring that even when carrying heavy moving heads at maximum speed, the unit remains stable and vibration-free.
The technical hurdle of infinite rotation is the management of data and power. Our X-axis Extender utilizes a gold-plated slip-ring assembly, which offers the lowest possible electrical resistance. This is critical for DMX signals, which are sensitive to interference.
Zero Signal Loss: Experience no "flicker" or data drop-outs, even at maximum RPM. The signal remains as clean as a direct cable connection.
High-Capacity Power Path: The internal wiring is gauged to handle high-wattage fixtures, ensuring that your mounted moving heads receive consistent voltage without heat buildup in the rotation joint.
Maintenance-Free Seals: The rotation assembly is sealed against dust and theatrical fog residue, ensuring that the lubricated parts stay clean and the movement stays silent over years of use.
In the professional world, safety and speed of installation are paramount. The Rotating X-axis Extender is built with integrated rigging points that follow international safety standards.

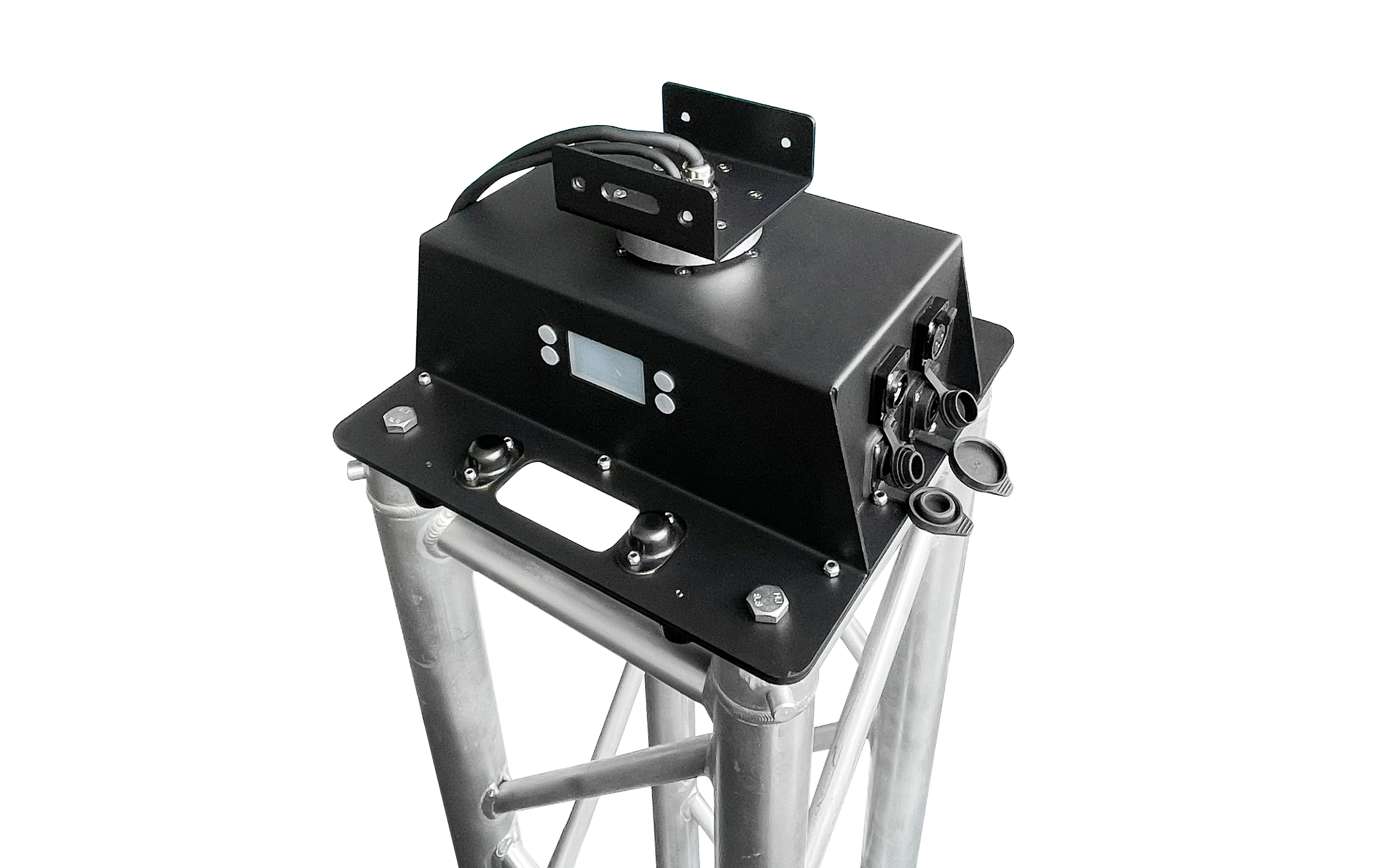

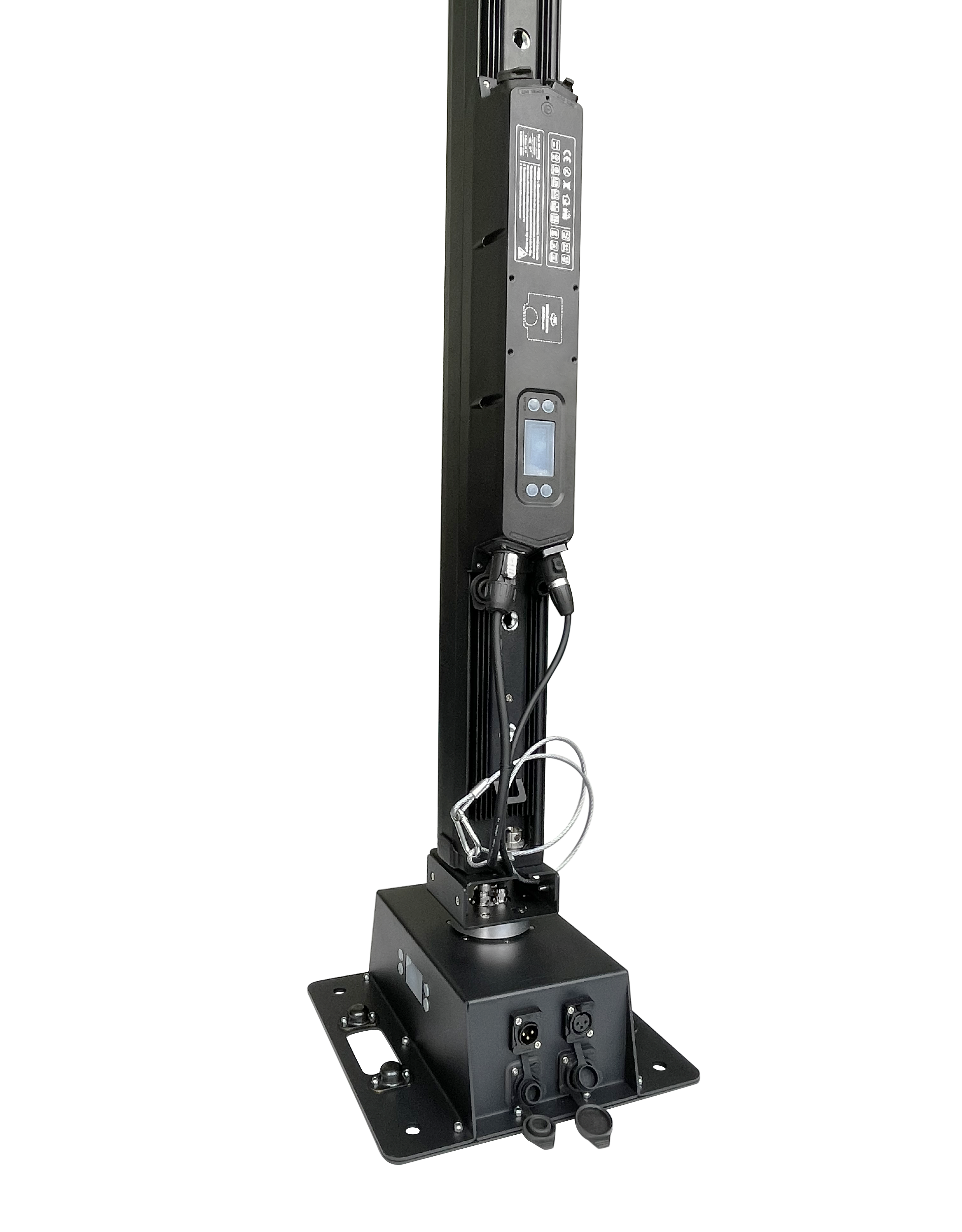

Flexible Orientation: The unit can be rigged horizontally on a truss, mounted vertically on a "totem," or placed on the floor for dramatic up-lighting effects.
Secure Fixture Mounting: The mounting plates feature multiple bolt patterns and safety cable attachment points, ensuring that your expensive lighting fixtures stay securely fastened even during intense kinetic sequences.
Fast Rigging: The streamlined design allows a single technician to rig and patch the unit in minutes, a vital feature for touring productions where load-in times are measured in seconds.
Q: Can this extender handle the weight of a large 380W moving head?
A: Yes. The X-axis Extender is engineered with heavy-duty bearings specifically designed to handle the offset weight and centrifugal force of professional moving heads. Always check the specific load rating of your chosen length before rigging.
Q: Does the infinite rotation cause DMX lag or "ghosting"?
A: Not at all. We use high-performance gold-plated slip rings that maintain a constant, high-speed data connection. Your DMX signal remains as responsive as if it were plugged directly into the wall.
Q: Is it difficult to program the synchronization between multiple units?
A: If your console supports DMX, it is very simple. We provide a comprehensive DMX map that allows you to control speed and position. Many modern lighting consoles have built-in "fan" and "offset" tools that make programming wave effects with our extenders intuitive.
Q: What maintenance is required for the rotation mechanism?
A: The Rotating X-axis Extender is designed to be virtually maintenance-free. We recommend a simple visual inspection of the mounting bolts before every show and a light cleaning of the exterior to remove dust. The internal bearings are factory-lubricated and sealed.
Q: Can I use this for permanent outdoor installations?
A: While this specific model is designed for indoor or covered stage use, we do offer specialized weather-protected versions with enhanced seals for architectural or outdoor landmark projects. Please contact our sales team for IP-rated options.
Q: Does it support RDM for remote addressing?
A: Yes, full RDM support is integrated. This allows your technicians to address the units and monitor motor health directly from the lighting desk, which is essential when units are rigged in hard-to-reach locations.
