3D/Wysiwyg 3D English Manual
3D/Wysiwyg 3D Russian Manual
3D/Wysiwyg 3D Spanish Manual
3D/Wysiwyg 3D Japanese Manual
3D/Wysiwyg 3D French Manual
3D/Wysiwyg 3D German Manual
(This product is not for sale, it can be downloaded for
free for the convenience of stage lighting industry practitioners)
Availability:
  • Stage lighting console good

  • AVQLIGHT

·Intel Core i5 CPU, 4GB memory, 120G solid state drive.


 Wysiwyg3D software advanced rendering smoothly


·1 19-inch widescreen touch display.


·Input voltage: 110V~220V 50~60Hz, built-in UPS uninterruptible power supply

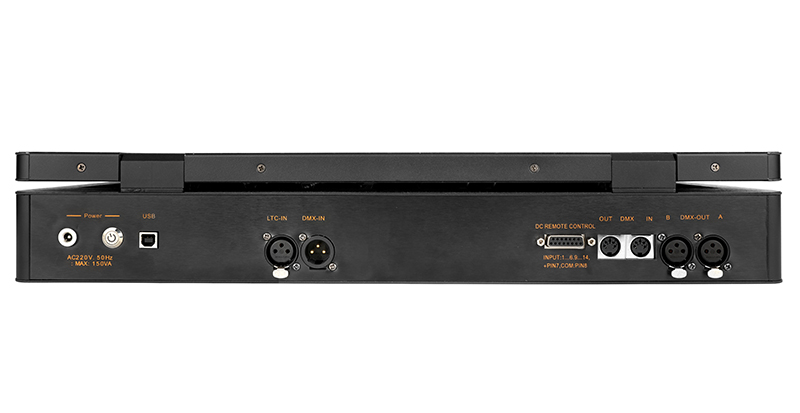

·2 DMX-512 output interfaces, 1 DMX-512 input interface (composite type);


·1 LTC time code input interface, 1 MIDI time code input interface.


·1 master dimming wheel, 4 attribute table code wheels, 1 master fader, 2 AB faders


·6 program playback faders, 12 program storage function keys

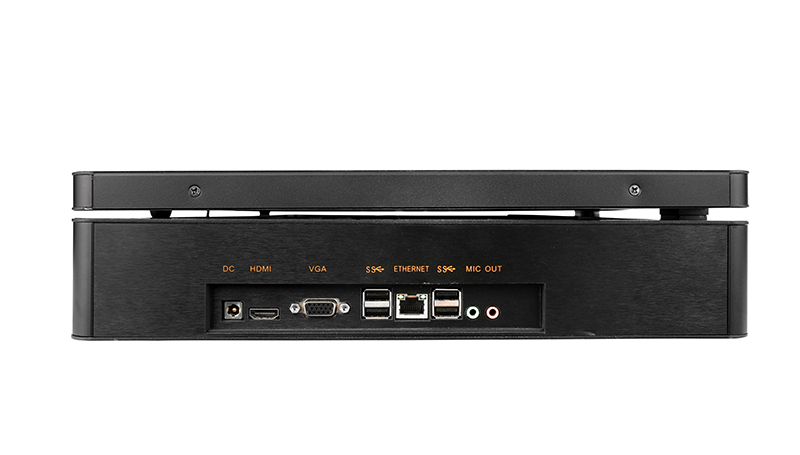

·4 USB interfaces, 1 audio interface, 1 network interface


·Product size: 52×35×9


·Product weight: 9.2KG


Product Description:

Stage Lighting Console Good

A powerful and versatile lighting console designed for professional lighting control.

The Stage Lighting Console Good offers a comprehensive suite of features, including a high-performance processor, a large touchscreen display, and a wide range of connectivity options. It is designed to provide smooth and efficient control of your lighting system.

Product Parameters

ParameterValue
ProcessorIntel Core i5
Memory4GB
Storage120GB SSD
Display19-inch widescreen touch
Power Supply110V~220V, 50/60Hz, UPS
DMX2 outputs, 1 input
TimecodeLTC, MIDI
Controls1 master dimming wheel, 4 attribute wheels, 1 master fader, 2 AB faders, 6 playback faders, 12 program storage keys
Interfaces4 USB, 1 audio, 1 network
Dimensions52×35×9 cm
Weight9.2 kg

Key Features and Benefits

  • Powerful Hardware: Equipped with an Intel Core i5 processor and a solid-state drive for fast and reliable performance.

  • Visual Programming: Features Wysiwyg 3D software for intuitive and visual programming.

  • Large Touchscreen: Provides a clear and easy-to-use interface for controlling your lighting system.

  • Extensive Connectivity: Offers multiple DMX, timecode, and network connections for flexible integration.

  • Reliable Power: Built-in UPS ensures uninterrupted operation in case of power outages.

Applications

  • Theater: Ideal for controlling complex lighting designs for theatrical productions.

  • Events: Perfect for various events, including concerts, corporate events, and weddings.

  • Television and Film: Suitable for studio lighting and on-set control.

  • Theme Parks: Can be used to create immersive and dynamic lighting environments.

This Stage Lighting Console Good offers a robust and feature-rich solution for demanding lighting control applications.
