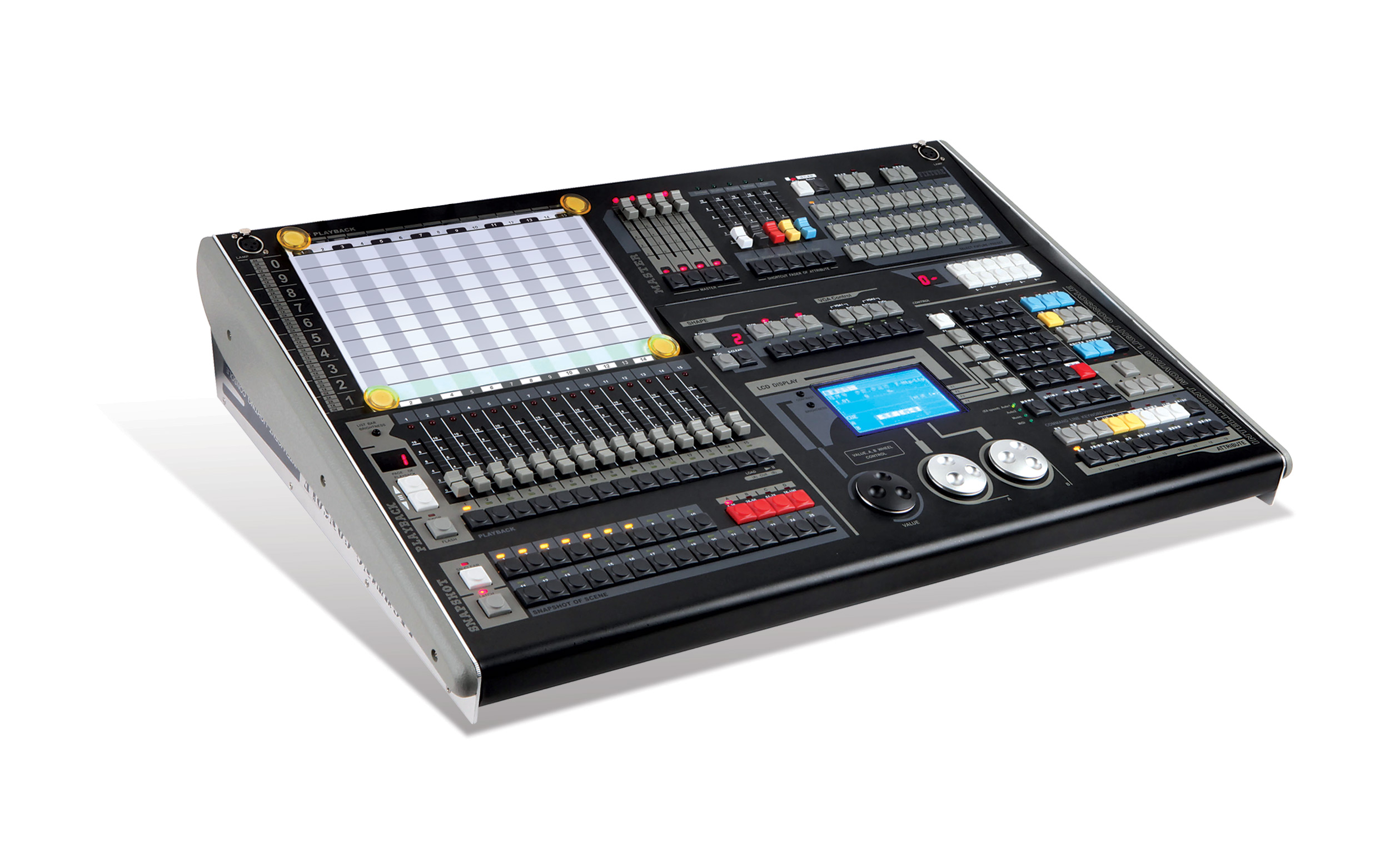

EXP4000 DMX Lighting Console | 2048 Channels for Stage

Share to:

Exp4000

Availability:



Inquire Add to Basket

EXP4000 MOVING LIGHT CONTROLLER

l 2048 DMX channels, DMX512/1990 standard, Output port with optical isolated.

l Up to 150 intelligent Fixtures or 150 Dimmer may be connected.

l Up to 42 channels each Fixture. Fixture Library mode, “pearl” Fixture Library compatible.

l 600 Playback program, 200 Group, 210 Preset, 100 Snapshot.

l With a playback of the list display, Users can view and write playback list.

l 100 Scene-snapshots can be directly used keys running (flash or latch).

l With attribute fader of fixture (including dimmer, shutter, magenta, yellow and cyan). Used to quickly control the LED fixture.

l Up to 135 SHAPE generators. SHAPE is provided to control such effects as circles, lines and dimmer effect, etc

l Chase trigger mode selectable: Auto1, Auto2, Music synchronously and MIDI.

l USB port is provided. USB-disk can record the data of controller, Controller can be upgraded through the USB port.

l 1 VGA port, user can connect it to the colorful CRT or LCD displays (OPTIONAL).

l LCD display with backlight.

l 12V accessory operate light (OPTIONAL).

l Power supply: AC 110-240V / 50-60Hz

l Size: 820mm x 540mm x 175mm

Product Description:

The EXP4000 DMX Lighting Console is a powerful and versatile tool designed for professional lighting control. With 2048 DMX channels, it offers extensive control over a wide range of lighting fixtures. The console supports up to 150 intelligent fixtures or 150 dimmers, each with up to 42 channels. It also features a comprehensive library of pre-programmed fixtures for quick setup and easy operation.

The EXP4000 provides a variety of playback options, including 600 playback programs, 200 groups, 210 presets, and 100 snapshots. Users can easily create dynamic lighting sequences and chase effects. Additionally, the console offers a range of shape generators for creating custom visual effects.

EXP4000 DMX Lighting Console | 2048 Channels for Stage

Product Parameters:

Parameter	Value
DMX Channels	2048
DMX Standard	DMX512/1990
Maximum Fixtures	150
Maximum Channels per Fixture	42
Playback Programs	600
Groups	200
Presets	210
Snapshots	100
Shape Generators	135
USB Port	Yes, for data recording and upgrades
VGA Port	Optional, for external display
Power Supply	AC 110-240V / 50-60Hz
Dimensions	820mm x 540mm x 175mm

Features of EXP4000 DMX Lighting Console:

· High Channel Capacity: The console supports up to 2048 DMX channels, allowing for control of a large number of lighting fixtures.

· Extensive Fixture Control: It can control up to 150 intelligent fixtures or 150 dimmers, with each fixture supporting up to 42 channels.

· Diverse Playback Options: The console offers a variety of playback modes including 600 playback programs, 200 groups, 210 presets, and 100 snapshots.

· Customizable Shape Generation: With up to 135 shape generators, users can create unique visual effects such as circles, lines, and dimmer effects.

· Flexible Chase Control: The console supports multiple chase trigger modes, including Auto, Music sync, and MIDI.

· User-Friendly Interface: The console features a clear LCD display and intuitive controls for easy operation.

· Data Storage and Upgrade: The built-in USB port allows for data backup, restoration, and firmware updates.

· Versatile Connectivity: The VGA port enables connection to external monitors for visual feedback.
