DMX signal amplifier

(Product Description):

This AVQLIGHT DMX signal amplifier boosts DMX signals. It supports bidirectional data transfer. It accepts RDM or DMX input. It splits the input signal into six outputs.

The device features high voltage protection. It provides complete electrical isolation between inputs and outputs. This prevents ground loops and interference.

Power input is AC 88～256V, 50/60Hz. It uses NEUTRIK 3-pin XLR connectors. 5-pin XLR is an option.

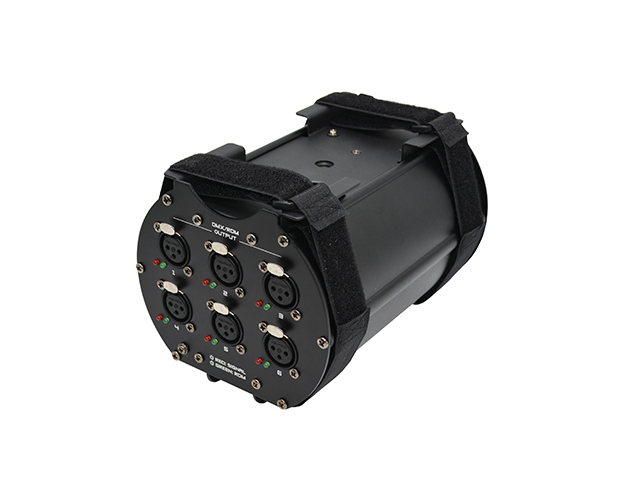

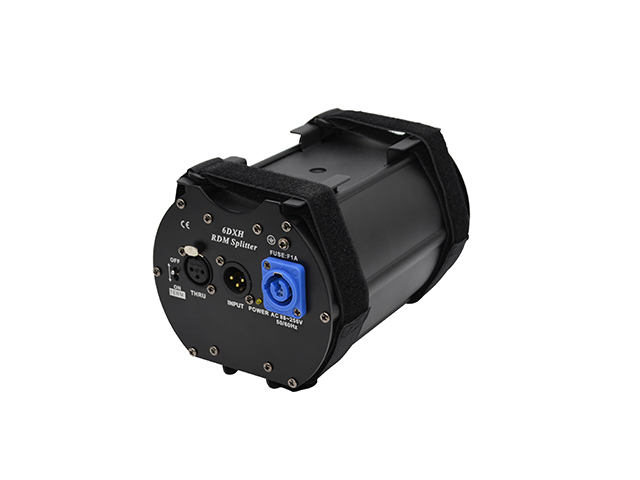

Each channel has a separate signal splitter system. Each channel has an individual LED indicator. A PowerCON connector simplifies use for rentals and mobile shows.

The amplifier offers multiple installation methods. This suits various applications. Its dimensions are 186mm×128mm×124mm. The net weight is 0.9kg.

(Product Parameter Table):

Product Features of AVQLIGHT DMX Signal Amplifier:

• Bidirectional      Data Transfer: Supports      two-way communication for RDM (Remote Device Management) and DMX signals.      This allows for device configuration and monitoring.

• Multiple      Signal Input Support: Accepts both      RDM and standard DMX signals as input, offering flexibility for various      control systems.

• Six-Way      Signal Splitting: Splits a      single input signal into six separate outputs, expanding the DMX network.      This allows for connection of more fixtures.

• Robust Input      Protection: Features high voltage      protection on the input, safeguarding the amplifier from electrical surges      and damage.

• Complete      Electrical Isolation: Provides      full electrical isolation between all inputs and outputs. This prevents      ground loops and electrical interference, ensuring reliable signal      transmission.

• Wide Range      Power Input: Operates on      AC power from 88V to 256V at 50/60Hz. This makes it suitable for use in      various regions with different power standards.

• Professional      Connectors: Uses robust NEUTRIK      3-pin XLR connectors for reliable signal connections. 5-pin XLR connectors      are available as an option.

• Clear Channel      Indication: Each output channel has      an individual LED indicator, providing clear visual feedback on signal      presence and activity.

• Convenient      Power Connection: Equipped      with a PowerCON connector for secure and reliable power connection, ideal      for rentals and mobile shows.

• Flexible      Installation Options: Offers      multiple installation methods to suit various mounting requirements and      locations.

• Compact and      Lightweight Design: Compact      dimensions (186mm×128mm×124mm) and light weight (0.9kg) make it easy to      transport and install.

• Reliable      Signal Amplification: Amplifies      the DMX signal to maintain signal strength over long cable runs,      preventing signal degradation and ensuring reliable communication with      lighting fixtures.

AVQLIGHT DMX Signal Amplifier Application Scenarios:

• Outdoor      Performances: Suitable for      outdoor stage shows, theatrical productions, and dance performances. It      ensures reliable DMX signal distribution over long distances in outdoor      environments.

• Outdoor Music      Concerts: Useful for large-scale      music events and festivals. It strengthens the DMX signal for numerous      lighting fixtures across a wide area.

• Outdoor      Events: Applicable to corporate      events, product launches, and private parties held outdoors. It      facilitates complex lighting setups for various outdoor activities.

• Rental      Applications: Ideal for      rental companies providing lighting equipment for events. Its robust      design and reliable performance make it suitable for frequent transport      and setup.

• Stadiums: Suitable for large sports venues and arenas. It      distributes DMX signals to lighting fixtures covering vast areas.

• Architectural      Lighting: Useful for illuminating      building facades, monuments, and landscapes. It ensures stable DMX signal      transmission for outdoor architectural installations.

• Theme Parks: Applicable to theme park attractions, shows, and      themed areas. It supports complex lighting designs and synchronized      effects within the park.

• Entertainment      Clubs: Suitable for nightclubs,      bars, and other entertainment venues. It enhances lighting effects for      dynamic club atmospheres.

• Bar Parties: Useful for small to medium-sized bar events and      parties. It provides reliable DMX signal distribution for lighting      effects.

• Parks and      Gardens: Applicable to outdoor      landscape lighting projects in parks and gardens. It ensures stable DMX      signal transmission for outdoor lighting installations.

• Television      Studios: Can be used in      television studios for controlling lighting systems. The signal stability      and isolation are important in broadcast environments.

• Live Events      and Tours: Suitable for touring      productions that require reliable DMX signal distribution across different      venues.

• Fixed      Installations: Applicable      to permanent lighting installations in theaters, auditoriums, and other      venues.

•


(FAQ):

• Q: What is      the main function of this DMX amplifier?

• A: It boosts       and splits DMX signals for reliable transmission.

• Q: How many      DMX outputs does it have?

• A: It has       six DMX outputs.

• Q: Does it      support RDM?

• A: Yes, it       supports RDM bidirectional communication.

• Q: What is      the input voltage range?

• A: It       supports AC 88-256V, 50/60Hz.

• Q: What type      of XLR connectors are used?

• A: It uses       NEUTRIK 3-pin XLR connectors. 5-pin is optional.

• Q: Is it      suitable for outdoor use?

• A: While the       description doesn't specify an IP rating, its robustness and wide voltage       range suggest suitability for varied environments, but consult       specifications for specific weather protection.

• Q: What are      the dimensions and weight?

• A: The       dimensions are 186mm×128mm×124mm, and the weight is 0.9kg.

• Q: What is      the benefit of electrical isolation?

• A: It       prevents ground loops and interference, ensuring stable signal       transmission.
