| Availability: | |
|---|---|
NPU
AVQLIGHT
Intel i5 4590 processor, 8Gb memory, Kingston 120G SSD system hard disk
·Real-time calculation, can control up to 4,096 control parameters at the same time

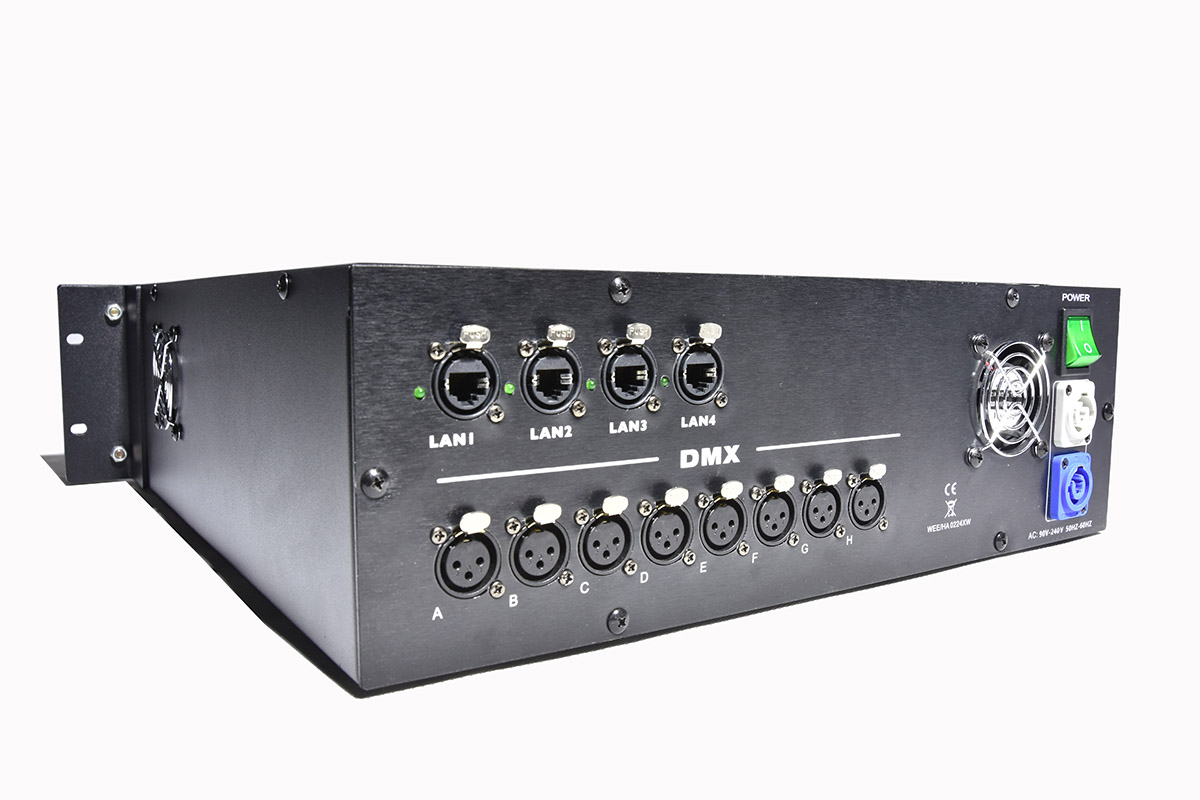

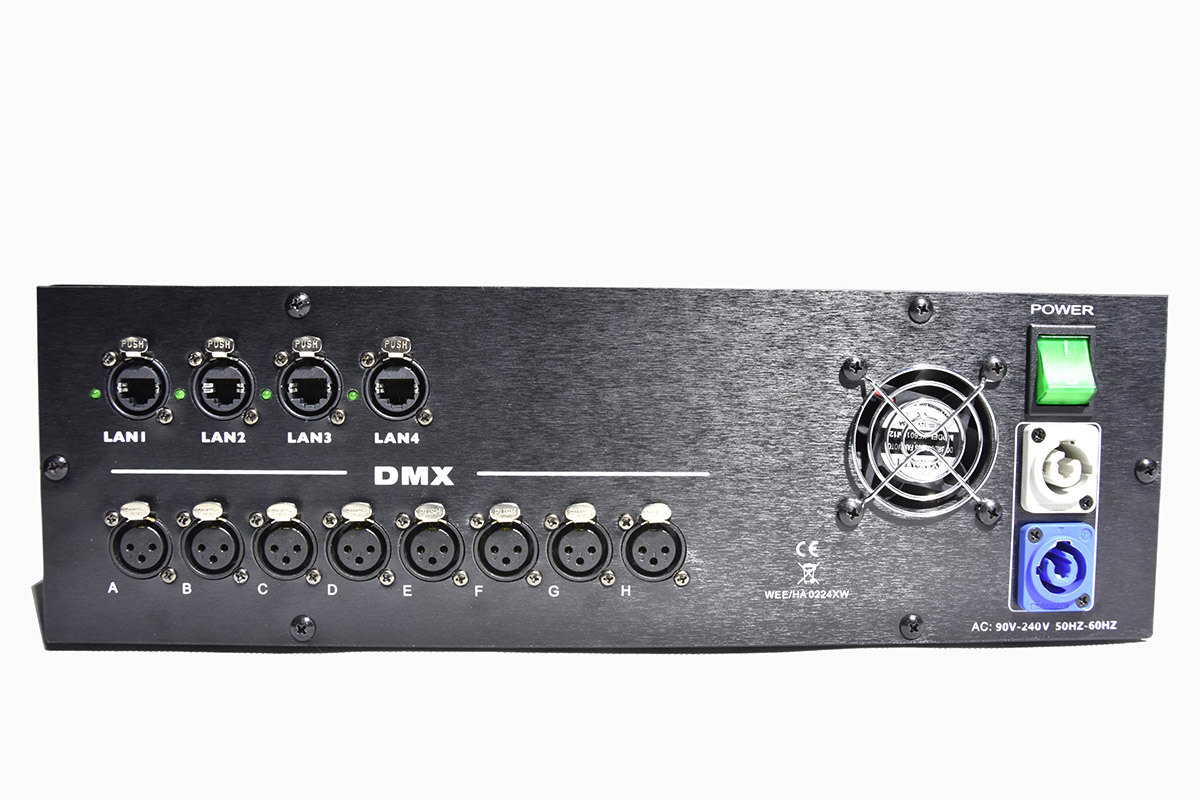

·Equipped with 8 DMX512 output ports

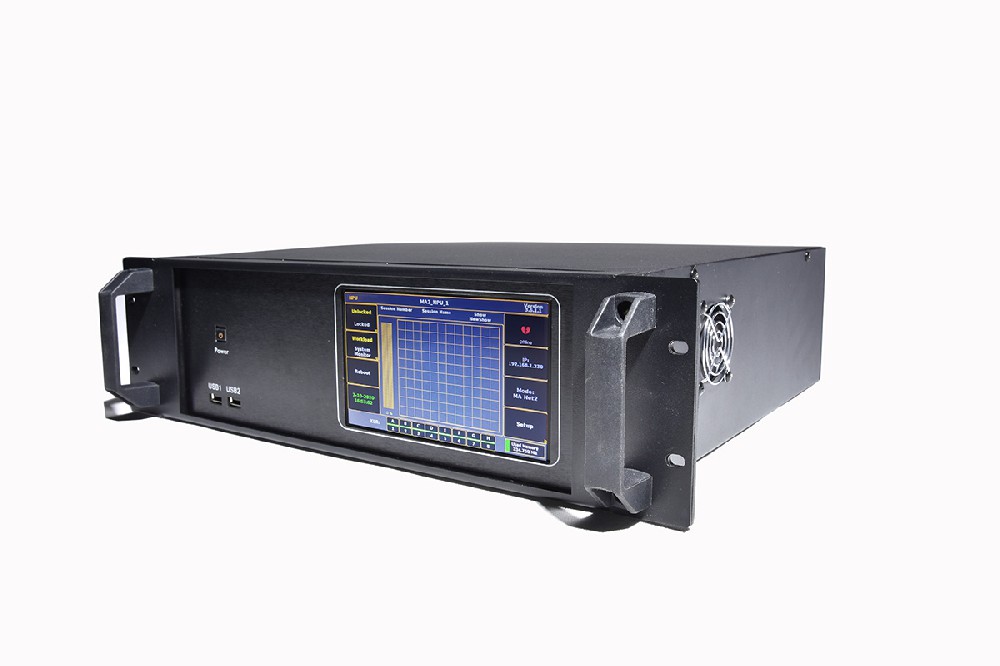

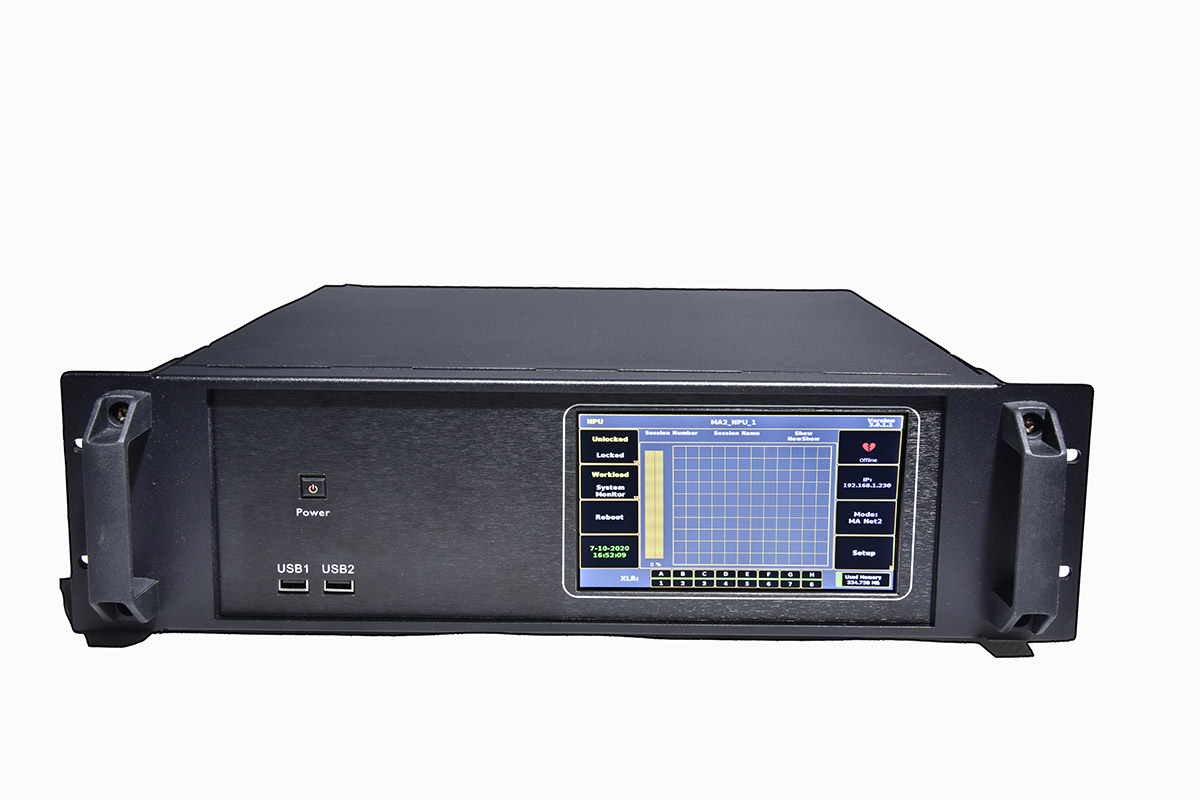

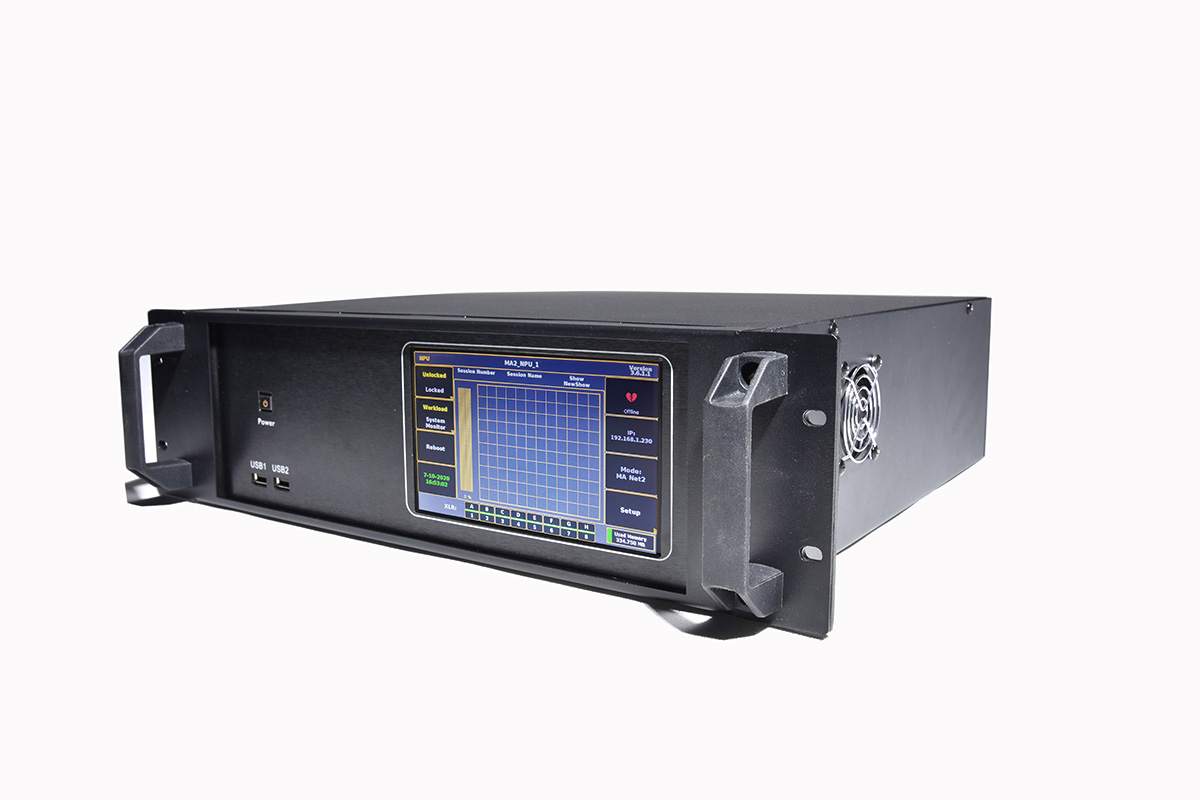

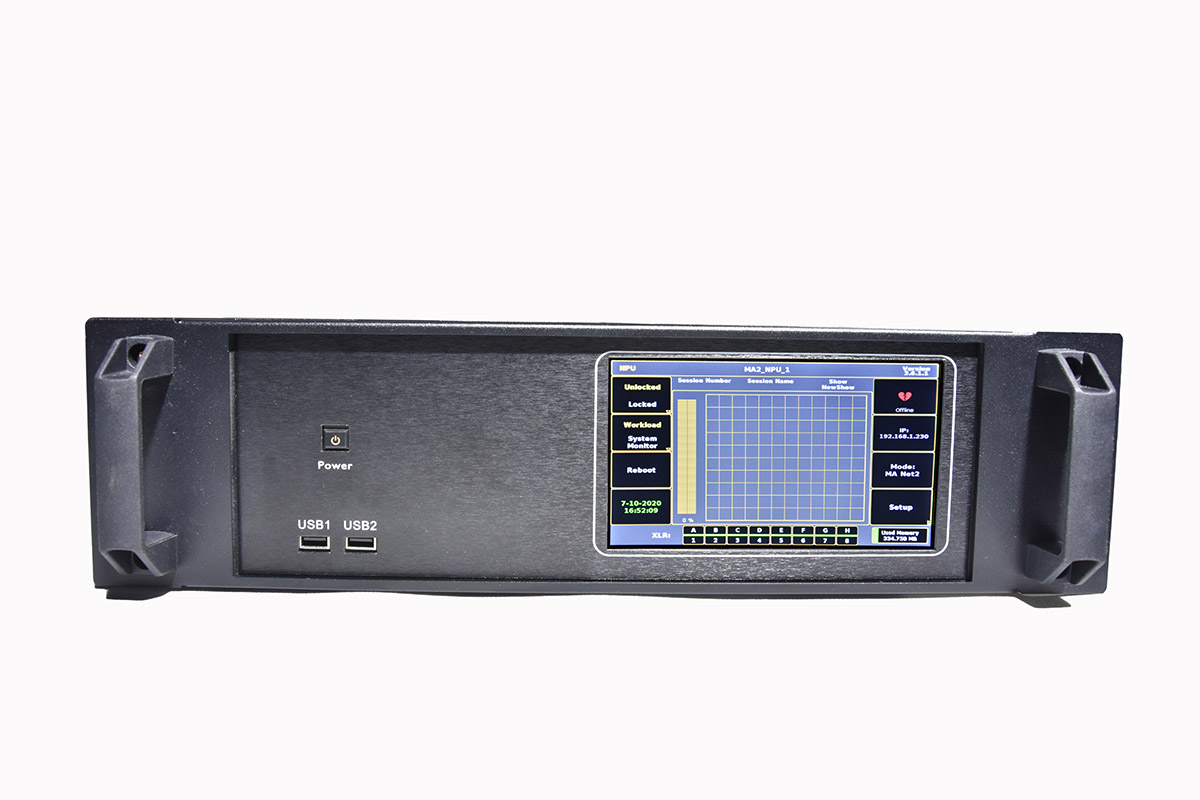

·Built-in 1 7-inch TFT touch screen
·UPS works for one hour without external power supply. If longer time is required, it can be customized
·Customizable 220V power-on automatic power-on 220V power-off delay of one minute automatic power-off
No manual operation is required, which facilitates the operation process of engineering equipment running back and forth in the computer room
·Built-in 4-port Gigabit network switch
·2 USB 2.0 connection interfaces
·2 fast power plugs cascade to reduce excessive power lines
·Standard 4U size can be mounted on the cabinet
Intel i5 4590 processor, 8Gb memory, Kingston 120G SSD system hard disk
·Real-time calculation, can control up to 4,096 control parameters at the same time
·Equipped with 8 DMX512 output ports
·Built-in 1 7-inch TFT touch screen
·UPS works for one hour without external power supply. If longer time is required, it can be customized
·Customizable 220V power-on automatic power-on 220V power-off delay of one minute automatic power-off
No manual operation is required, which facilitates the operation process of engineering equipment running back and forth in the computer room
·Built-in 4-port Gigabit network switch
·2 USB 2.0 connection interfaces
·2 fast power plugs cascade to reduce excessive power lines
·Standard 4U size can be mounted on the cabinet
MA NPU Chinese manual
MA NPU English manual
MA NPU Arabic manual
MA NPU Russian manual
MA NPU Spanish manual
MA NPU German manual
MA NPU French manual
MA Network Solutions
(Not for sale, only for better operation by stage lighting practitioners around the world)
MA NPU (Network Processing Unit)
MA NPU (Network Processing Unit) integrates computing power into the network and provides the same performance as the MA2 console. MA NPU provides and processes 4,096 parameters.
MA NPU has an easy-to-read touch screen for intuitive use and easy access to all important information. 8 DMX XLR 5-pin connectors on the back of MA NPU allow for the most flexible use in a network environment.
MA NPU is the link between Ethernet and DMX control devices. MA NPU adds processing power and parameters to the MA system. For decentralized DMX networks, MA NPU converts incoming Ethernet data into DMX data. The converted data is transmitted via 8 independent DMX connectors, which can be configured as DMX input or output.
In one network, multiple MA2 consoles share available MA NPU devices. For parameter expansion, the MA NPU should be located in a centralized location, while the MA xPort nodes are used to distribute and output DMX data. This allows multiple consoles to use DMX devices simultaneously and provides a redundant operating mode without the need for additional components such as DMX merging.
Features
Calculates up to 65,536 parameters in real time with the MA2 system (up to 256 DMX universes)
4,096 HTP/LTP parameters
8 DMX outputs (XLR 5pin)
1 internal command touch screen (7”)
1 powerCON input and output
1 etherCON connector
3 USB 2.0 connectors
Technical Specifications
Supplied with
MA Quick Manual
Technical Specifications
Operating voltage/supply voltage 120V/230V, 50/60Hz (auto-detection)
Power 150 VA
Dimensions 485 x 332 x 126 mm / 19 x 13 x 5 in
Net weight 8.4 kg / 18.5 lbs
Output connectors 8 x XLR 5pin (DMX)
3 x USB
1 x etherCON
Input connectors 1 powerCON
Expanded Application of MA NPU within Various Scenarios:
Outdoor Performances (e.g., Concerts, Festivals): The MA NPU extends the processing power of MA consoles for complex outdoor shows. It manages large numbers of fixtures and effects across multiple universes. It facilitates network distribution of DMX signals over long distances.
Outdoor Music Concerts: The MA NPU handles the high parameter counts common in large concerts. It allows multiple lighting consoles to share DMX resources. It provides redundancy for critical show elements.
Outdoor Events (e.g., Corporate Events, Festivals): The MA NPU simplifies complex lighting setups for diverse outdoor events. It manages lighting for stages, architectural elements, and other areas. It allows for flexible control and programming.
Rental Applications: The MA NPU is a valuable asset for rental companies. It expands the capabilities of their existing MA console inventory. It provides a robust and reliable network processing solution.
Stadiums and Arenas: The MA NPU manages the extensive lighting systems in large venues. It handles the high parameter counts and complex network configurations. It allows for centralized control and distribution of DMX signals.
Architectural Lighting Installations: The MA NPU provides network control for large-scale architectural lighting projects. It manages complex lighting scenes and effects. It allows for remote control and monitoring.
Theme Parks and Attractions: The MA NPU handles the complex lighting and show control systems in theme parks. It manages lighting for rides, shows, and themed areas. It provides reliable and synchronized control of multiple devices.
Touring Productions: The MA NPU is ideal for touring productions due to its network capabilities. It allows for easy setup and configuration in different venues. It provides a consistent control platform across different locations.
Television Broadcasts and Studios: The MA NPU can be used to manage lighting in television studios and for broadcasts. It provides precise control and synchronization of lighting cues. It integrates with other broadcast equipment via network protocols.
These expanded descriptions focus on the MA NPU's role in managing lighting within each scenario, emphasizing its network processing capabilities, parameter handling, and DMX distribution.
常见问题解答 (FAQ):
Q: What is the main function of the MA NPU?
A: It adds processing power and parameters to the MA lighting control system.
Q: How many parameters does it process?
A: It provides and processes 4,096 parameters.
Q: How many DMX outputs does it have?
A: It has 8 DMX outputs (XLR 5-pin).
Q: What is the purpose of the touch screen?
A: The touch screen provides intuitive control and access to important information.
Q: How does it connect to the network?
A: It connects via an etherCON connector.
Q: Can multiple consoles share an MA NPU?
A: Yes, multiple MA2 consoles can share available MA NPU devices.
Q: What is the power consumption?
A: The power consumption is 150 VA.
Q: What is the input voltage?
A: It supports 120V/230V, 50/60Hz (auto-detection).
英语关键词 (English Keywords):
MA Network Processing Unit (NPU): This is the core product name.
Lighting Network Processing: This describes the NPU's primary function.
DMX Network Distribution: This highlights the NPU's role in DMX signal management.
Parameter Expansion: This refers to the NPU's ability to increase system capacity.
MA Lighting Control System: This places the NPU within the broader MA ecosystem.
Networked Lighting Control: This emphasizes the NPU's network-centric design.
Stage Lighting Network: This targets the entertainment lighting industry.
Architectural Lighting Network: This targets architectural applications.
Ethernet DMX Conversion: This describes the NPU's data conversion function.
Redundant Lighting System: This highlights the NPU's role in creating backup systems.
Lighting Show Control: This refers to the NPU's use in complex show setups.
Large Scale Lighting Systems: This indicates the NPU's suitability for large projects.
Touring Lighting Network Solution: This targets the touring market.
Broadcast Lighting Network: This targets the television and broadcast industry.
