Product Description:

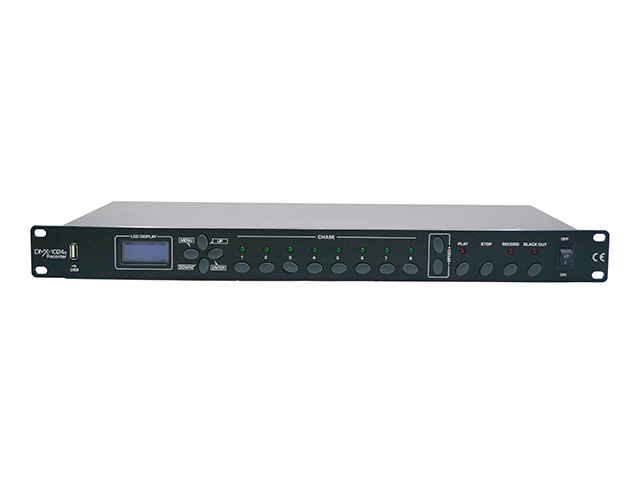

The AVQLIGHT Lighting Control Program Recorder DMX512-LZ simplifies DMX lighting control. It offers recording and playback functionality for up to 512 channels.
This device features a user-friendly interface. It offers two operation modes: System (all functions) and User (playback only). This caters to both advanced and basic users.
The recorder supports multiple playback modes. These include Multi, Cycle, and Single. It also offers auto and music trigger modes for chase execution.
Users can adjust the playback speed of each program. This allows for precise timing and synchronization.
The device has built-in 512M storage. It can store up to 8 programs. Each program can record for over 5 minutes. The recording time depends on the console’s channels and content size.
The recorder accepts microphone and AV audio input. The input sensitivity is adjustable. This enables sound-activated lighting effects.

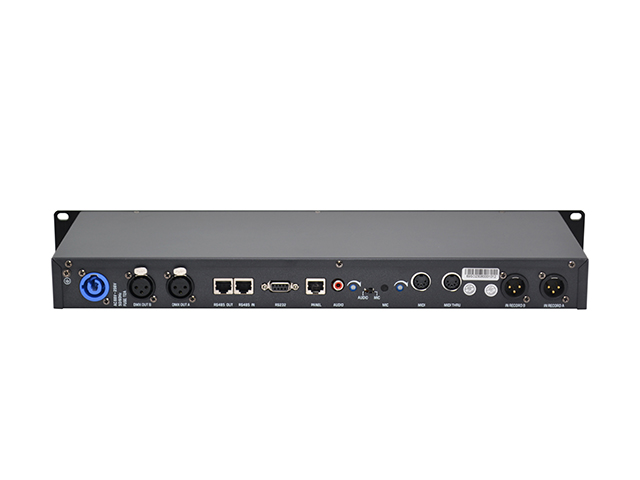

Connectivity options include RJ45 and RS232 ports. This allows connection to central control systems or touch panels. It also supports XLR 3-pin and RJ45 network connections.
A USB port is available for backup and download of programs. The device operates on AC88-256V power.
