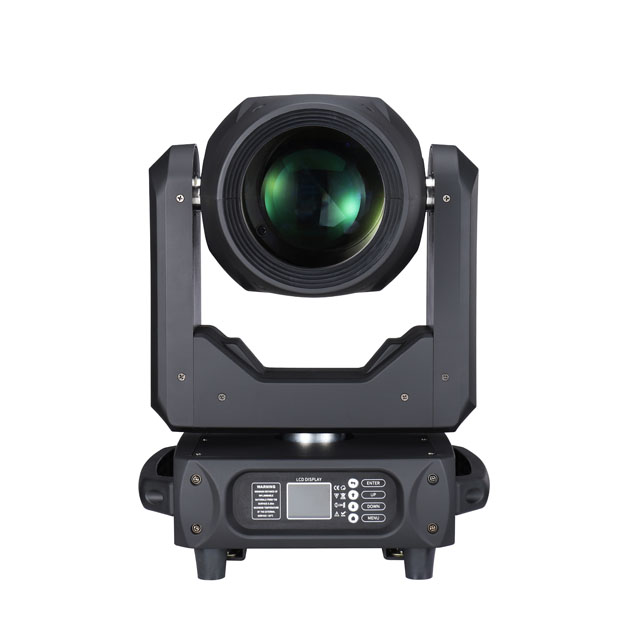

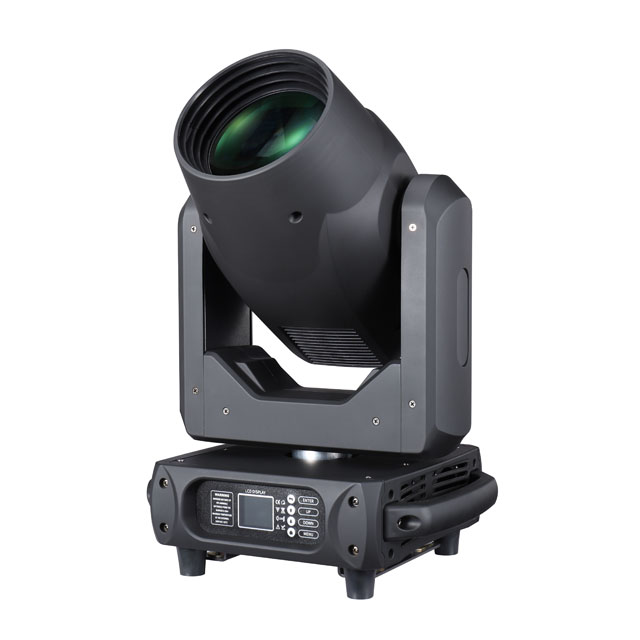

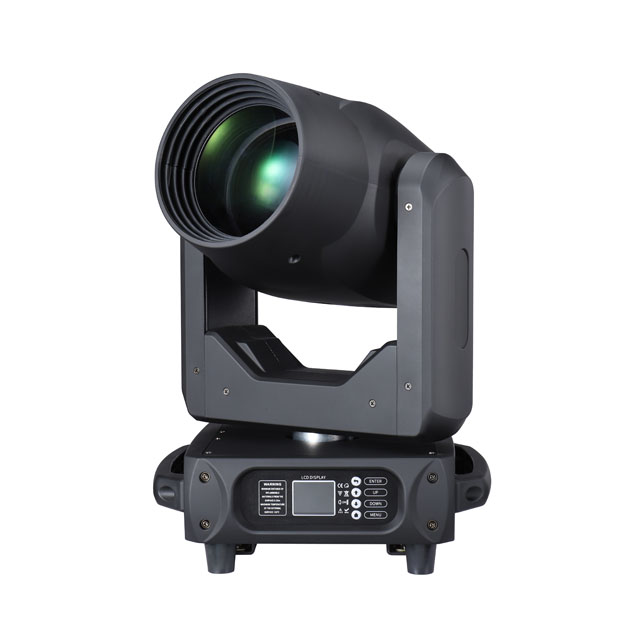

BEAM420W Professional Moving Head Light MINI-420

loading

Share to:
twitter sharing button
facebook sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button
Original imported USHIO 420W
Sharpy beam and rainbow effect
DMX512 Control
Strobe macro control
14colors + white
IP20
Availability:
  • BEAM-420

  • AVQ

Light Sources

Bulb :Original imported USHIO 421W

Lifespan:2000 hours

Color temperature : 7500k


Power Supply

Voltage:AC100-240V  50-60Hz

Power :550W


Optics Systems

Beam angle: 0° to 2°

Dimmer: 0-100% linear dimmer

Strobe: 1-20 times/second,pulse strobe, synchronous asynchronous strobe.

Fixed Color Wheel : 1 fixed color wheel with 14 color chips, half color effect, linear color conversion and bidirectional variable speed rotating rainbow effect

Static Gobo Wheel : 1 fixed pattern wheel has 15 patterns, with dithering effect and arbitrary positioning function

Prism: 8prism, 24prism bidirectional variable speed rotation

Focusing: Using high-precision glass optical lens, electronic linear high-definition adjustment

Atomization: 1 independent atomization effect, the light spot is soft and natural


Control

Control:DMX512, Auto-run, master/slave

Channels: 20 channels


Movement

Horizontal scan: 540°

Vertical scan: 270°


Connections:

DMX connector: 3PinXLR


Working Environment

Working temperature: -20-40℃

IP rate: IP20


Package

Gross weight: 15KG

Net weight:14Kg

Dimensions: 323x182x486mm


Quiet motor: smoother drive technology

Responsive and smooth at both high and slow speeds

Horizontal/Vertical: horizontal scanning angle 540° (16Bit precision scanning), vertical scanning angle 270° (16Bit precision scanning), with automatic return function, using three-phase motor not only provides fast and smooth scanning and eliminates transmission noise


Display interface: using wide-screen LCD liquid crystal display interface in Chinese and English

Sleep function: The advanced technology is used to realize the remote sleep function. When the lamp is disconnected from the signal, it will automatically enter the sleep state, making the lamp more stable and safer. You can set the sleep time by yourself.


Communication design: DMX wired/wireless signal transmission, RDM two-way control technology, DMX version upgrade


Intelligent heat dissipation: Using wind direction drainage and temperature intelligent monitoring technology, according to the temperature of different positions of the lamps, the cooling fans in different parts of the lamps are automatically driven to effectively cool the lamps and lanterns.
