Product Description
The AVQLIGHT BEAM-230W Moving Head Light BEAM-7R is a powerful beam fixture. It uses a Philips MSD 7R lamp. This light offers sharp beams and dynamic effects.
The advanced optical system ensures clear images. It provides an efficient light output. The beam angle is 2°.
The fixture has a user-friendly control panel. It includes four touch buttons and an LCD display. It supports DMX512 and RDM protocols. It offers 12 or 15 DMX channel modes. Software updates are possible via DMX.
The light offers precise movement. Pan is 540° and tilt is 270°. It has automatic position correction.
It features one fixed gobo wheel with 16 gobos plus open. The color wheel has 14 fixed colors plus white. It creates two-way rainbow effects.
The prism system includes an 8-facet prism, a 16-facet prism, and a tower mirror. The 16-facet prism can rotate and overlay with the tower mirror or 8-facet prism.
The input voltage range is 180-240V~ 50/60Hz. The power consumption is 330W. It uses Power Connector In/Out and three-pin XLR connectors for signal.
The fixture is compact and lightweight. It can be installed horizontally or vertically. It includes quick lock light hooks and a safety rope connection.
Key Features:
Powerful Light Source: Uses a Philips MSD 7R lamp for bright output. This provides a strong beam.
Precise Optics: Features an advanced optical system. It ensures clear and sharp images. The beam angle is 2°.
User-Friendly Control: Includes four touch buttons and an LCD display. This makes operation easy.
Flexible Control Options: Supports DMX512 and RDM protocols. It has 12/15 DMX channel modes.
Software Upgrades: Allows software updates via DMX connection. This keeps the fixture current.
Precise Movement: Offers 540° pan and 270° tilt movement. It has automatic position correction for smooth operation.
Diverse Gobo Options: Features one fixed gobo wheel with 16 gobos plus open. This provides various projection options.
Vibrant Colors: Includes one color wheel with 14 fixed colors plus white. It creates two-way rainbow effects.
Multiple Prism Effects: Offers an 8-facet prism, a 16-facet prism, and a tower mirror. The prisms can rotate and overlay. This creates complex aerial effects.
Wide Voltage Range: Accepts input voltage from 180-240V~ 50/60Hz.
Efficient Power Consumption: Consumes 330W of power.

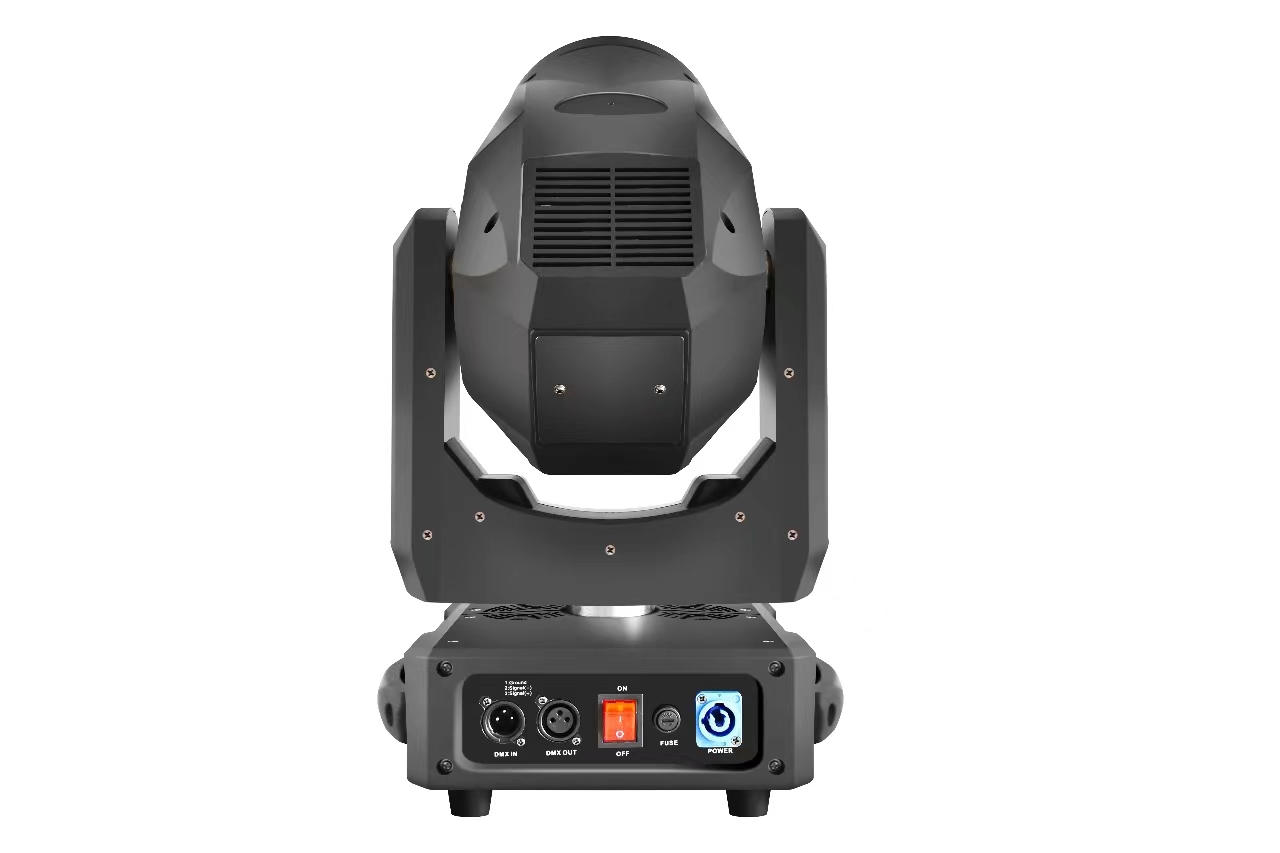

Standard Connections: Uses Power Connector In/Out for power and three-pin XLR for signal.
Compact and Lightweight: The fixture is relatively small and weighs 14.9 kg. This makes it easy to handle and transport.
Versatile Installation: Can be installed horizontally or vertically. It has 1/4 turn keyholes and quick lock hooks for easy mounting.
Safety Features: Includes a safety rope connection hole for secure installation.
Complete Package: Comes with an electronic manual, power cable, certificate, warranty card, and quick lock hooks.
Wide Operating Temperature: Operates in ambient temperatures from 0°C to 40°C.
Application Scenarios:
Bars and Clubs: Creates dynamic lighting effects for enhancing the atmosphere in bars, nightclubs, and lounges. It provides beam effects and vibrant colors.
Parties and Events: Adds excitement to private parties, corporate events, and celebrations. It offers various gobo projections and prism effects.
Weddings and Ceremonies: Sets the mood for wedding receptions and ceremonies. It creates romantic and celebratory lighting.
Theaters and Auditoriums: Provides powerful beam lighting for stage performances and presentations. It offers precise movement and control.
Live Performances and Concerts: Enhances the visual experience for concerts, music festivals, and other live shows. It delivers dynamic aerial effects and beam shows.
Mobile DJ Setups: Offers a portable and powerful lighting solution for mobile DJs. It is compact and lightweight.
TV Studios and Broadcasts: Provides focused beam lighting for television productions and broadcasts.
Exhibitions and Trade Shows: Highlights exhibits and creates visual interest at trade shows and exhibitions.
FAQ:
Here are the frequently asked questions about AVQLIGHT BEAM-230W Moving Head Light BEAM-7R:
Q: What type of lamp does this fixture use?
A: It uses Philips MSD 7R lamps.
Q: What is the beam angle?
A: The beam angle is 2°.
Q: What control protocols are supported?
A: It supports DMX512 and RDM.
Q: How many DMX channels does it use?
A: It can operate in 12 or 15 DMX channels.
Q: Does it have color mixing?
A: It has a color wheel with 14 fixed colors plus white and a two-way rainbow effect.
Q: What are the prism effects?
A: It includes an 8-facet prism, a 16-facet prism and a tower mirror that can be combined.
Q: What is the power consumption of the fixture?
A: The power consumption is 330W.
Q: What are the dimensions and weight?

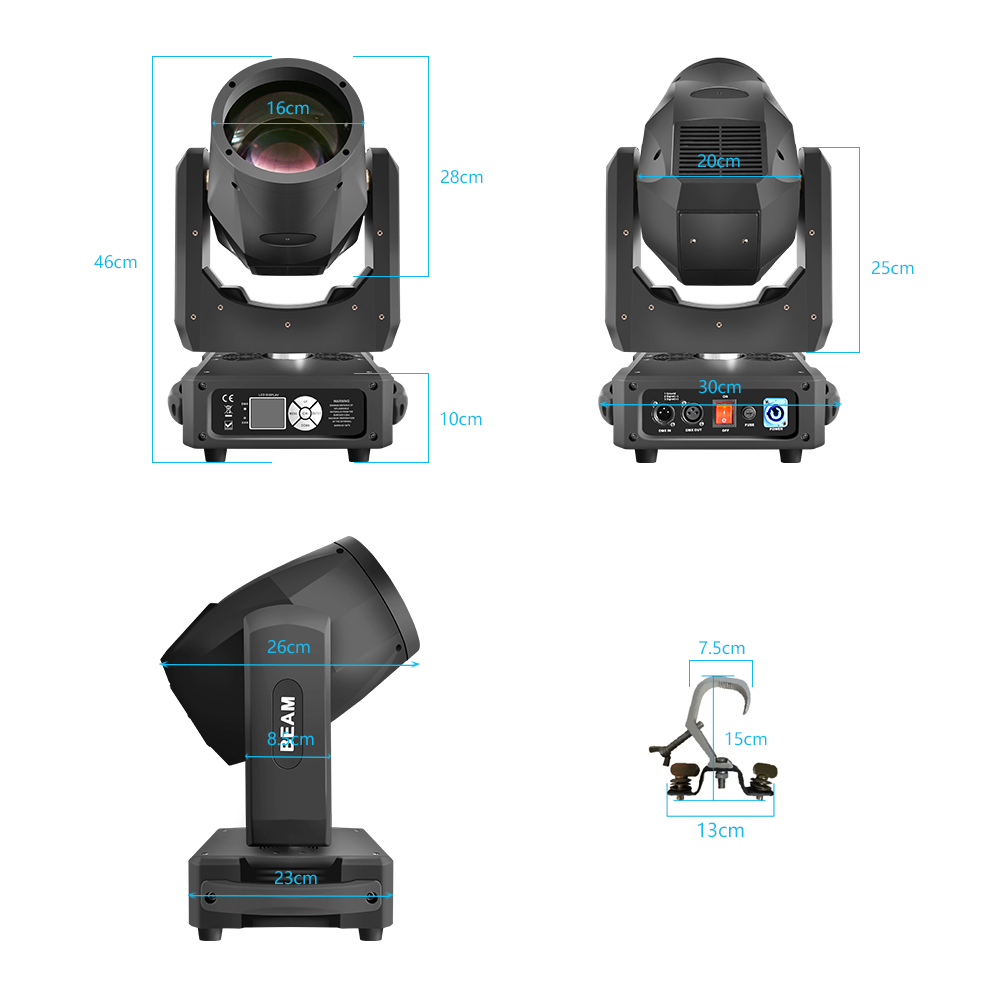

A: The fixture measures 336 x 240 x 507 mm and weighs 14.9 kg. The carton measures 420 x 410 x 575 mm and weighs 17 kg.
Q: Is it easy to install?
A: Yes, it can be mounted horizontally or vertically and comes with a quick-lock hook.
