Function Overview

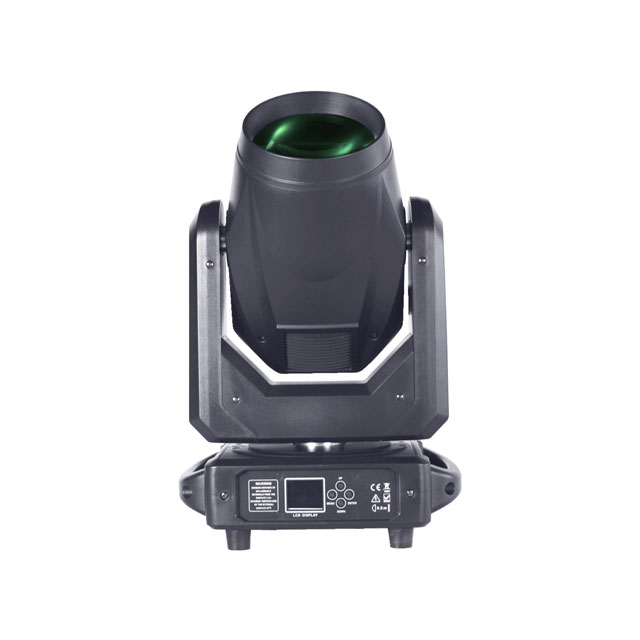

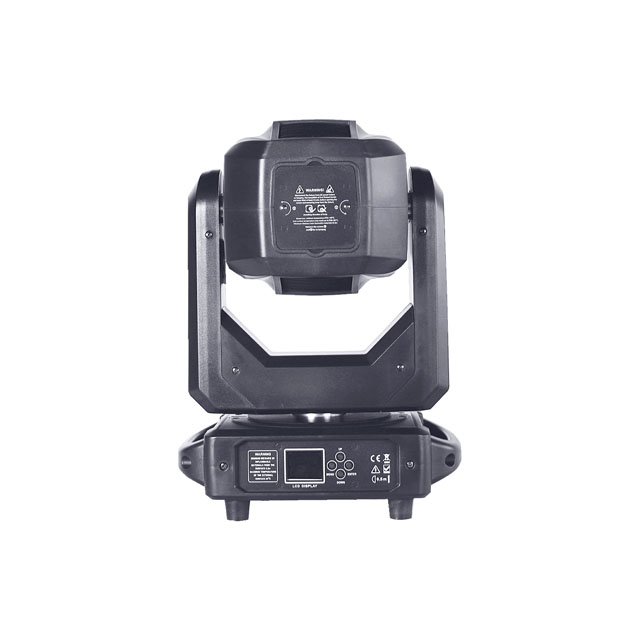

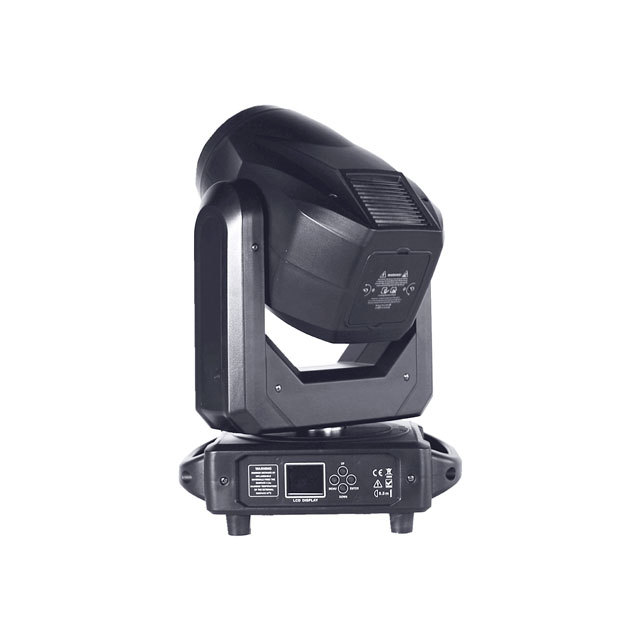

BEAM 300 uses imported light sources and a beam angle of 2°, which can release sharp and bright light effects and create a strong visual impact. Rich color plates and pattern plates can provide excellent color macro and dynamic effects. A variety of strobe speeds can be used with a variety of prisms and tower mirrors to create gorgeous and varied beam effects to meet the needs of various performances. Combined with wash lights such as WASH 400 and WASH 500, the stage rendering effect reaches the extreme. BEAM 300 is very suitable for bars, dance halls, nightclubs, performances and other entertainment venues.
Main features
Light source: Philips MSD Silver 300 LL
Color temperature: 7800K
Illuminance at 20 meters at 2° beam angle can reach 121,000 lux
Excellent color macro effect
Colorful rainbow effect
Fixed pattern plate: 1 fixed pattern plate, 16 patterns plus 1 white circle
Color plate: 1 color plate, 14 fixed colors plus white, two-way rainbow effect
Equipped with 1 8-prism, 16-prism and tower mirror, 16-prism can be rotated and superimposed with tower mirror or 8-prism in both directions
Beam angle: 2°
Independent atomization effect
Electric focus system
Outstanding strobe effect, variable speed
0-100% smooth dimming
No flicker under HD camera
Technical specifications
Light source
Light source: Philips MSD Silver 300 LL
Luminous flux of the lamp: 7,900 lumens
Optical system
Advanced optical system ensures clear image quality
Efficient optical system
Beam angle: 2°
Control and program
4 touch buttons
Control panel: LCD display
Control protocol: DMX512, RDM
DMX channel mode: 2 types
Control channels: 12/15
Software upgrade: Update software via DMX connection
X-axis/Y-axis
X-axis operation angle: 540°
Y-axis operation angle: 270°
X-axis/Y-axis position desynchronization automatic correction
Fixed pattern wheel
1 fixed pattern wheel, 16 fixed patterns plus white circle
Color wheel
1 color wheel, 14 fixed colors plus white, two-way rainbow effect
Prism
Equipped with 1 8-prism, 16-prism and tower mirror, 16-prism can be rotated and superimposed with tower mirror or 8-prism in both directions
Electrical and interface
Input voltage range: 180-240V~ 50/60Hz
Power: 330 W

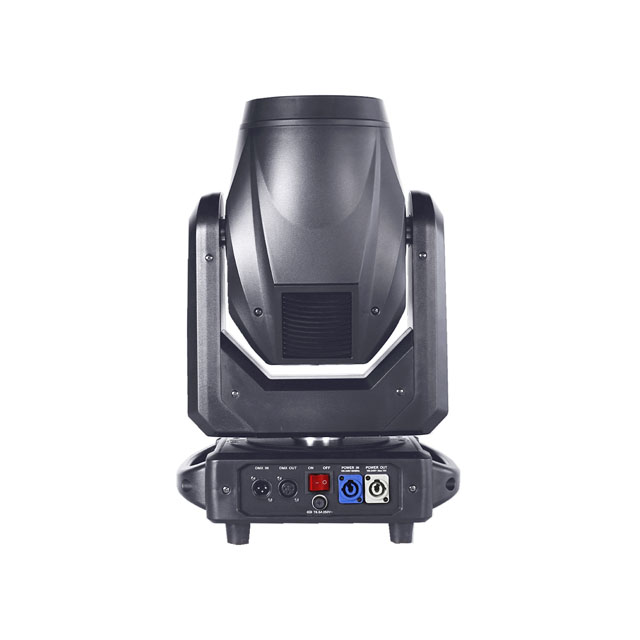

Power socket: power connector input/output
Signal input/output: three-pin XLR socket
Working environment
Maximum ambient temperature: 40°C
Minimum operating temperature: 0°C
Maximum surface temperature: 83°C
Installation
Can be installed horizontally or vertically
Universal operating position
Two pairs of 1/4 turn lock holes at the bottom
Two 1/4 turn quick lock light hooks
Safety rope connection hole
Factory configuration
Electronic manual
Power cord
Factory certificate and warranty card
Two 1/4 turn quick lock light hooks
