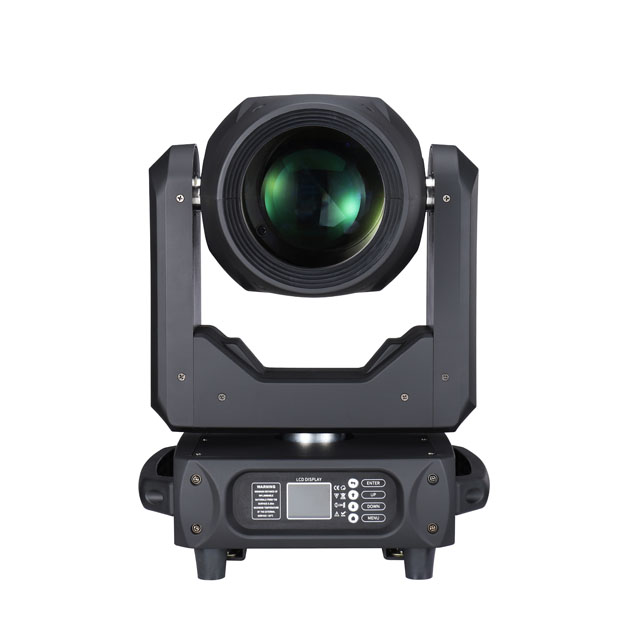

BEAM380W Professional Moving Head Light MINI-380

Share to:

Light source: Philips MSD Silver 380W
Light output lens diameter: 160mm
Beam angle: 2°
Color temperature: 7,800K
Electric focusing system
Fixed pattern plate: 10 patterns + 3 running water patterns + white circle
Color palette: 1 color palette, 14 colors + white, rainbow effect
8 prisms + 24 prisms, can be rotated independently in two directions, and can be superimposed
Two homogenizing tablets, efficient homogenization effect
Independent fog effect
Excellent color macro effects
0-100% smooth dimming
Multiple speed strobe effects

Availability:



Inquire Add to Basket

Model:
MINI-380
Brand:
AVQ

Parameter	Value
Light Source	Philips MSD Silver 380W
Color Temperature	7,800K
Lamp Life	1,500 hours
Beam Angle	2°
Control Protocols	DMX512, RDM
DMX Channels	14/19
Pan Angle	540°
Tilt Angle	244°
Gobos	10 static, 3 rotating, white circles
Colors	14 colors + white, rainbow effect
Prisms	1 x 8-facet, 1 x 24-facet
Power Consumption	485W
Dimensions	350 x 253 x 565 mm
Net Weight	18 kg

Functional Overview

BEAM 400 uses Philips imported light source, with a beam angle of 2°, which can release sharp and bright light effects; combined with 2 homogenizers, it effectively improves the uniformity of the light spot and eliminates the hollow feeling of the beam. Multiple colors and patterns provide superior color macros and dynamic effects. A variety of strobe speeds are used with a variety of prisms to create a gorgeous beam effect to meet the needs of various performances. BEAM 400 is very suitable for bars, dance halls, nightclubs, performances and other entertainment venues.

Main features

Light source: Philips MSD Silver 380W

Light output lens diameter: 160mm

Beam angle: 2°

Color temperature: 7,800K

Electric focusing system

Fixed pattern plate: 10 patterns + 3 running water patterns + white circle

Color palette: 1 color palette, 14 colors + white, rainbow effect

8 prisms + 24 prisms, can be rotated independently in two directions, and can be superimposed

Two homogenizing tablets, efficient homogenization effect

Independent fog effect

Excellent color macro effects

0-100% smooth dimming

Multiple speed strobe effects

BEAM380W Professional Moving Head Light

The BEAM380W is a high-performance moving head light designed for professional lighting applications. Powered by a Philips MSD Silver 380W lamp, this fixture offers exceptional brightness and color rendering. Its advanced optical system, combined with a wide range of features, makes it an ideal choice for stages, concerts, and events.

Key Features:

Bright Light Source: Equipped with a Philips MSD Silver 380W lamp for intense output.
Versatile Control: Offers DMX512 and RDM control protocols for seamless integration into lighting systems.
Precise Movement: Features smooth and precise pan and tilt movements with automatic correction.
Diverse Effects: Includes a variety of gobos, colors, and prisms for creating stunning visual effects.
Durable Construction: Built to withstand the rigors of professional use.

Applications:

Concert venues
Theaters
Nightclubs
Events
Architectural lighting

Here are the key features of the BEAM380W Professional Moving Head Light:

Core Features

Powerful Light Source: Equipped with a Philips MSD Silver 380W lamp, delivering intense brightness and vibrant colors.
Precise Movement: Offers smooth and accurate pan and tilt movements with automatic position correction.
Versatile Effects: Features a variety of gobos, colors, and prisms to create stunning visual effects.
Advanced Optics: Utilizes an advanced optical system for sharp beam projection and efficient light output.
Durable Construction: Built to withstand rigorous use in demanding environments.

Additional Features

DMX Control: Supports DMX512 and RDM protocols for flexible control and integration.
Cooling System: Efficient cooling system ensures optimal performance and longevity.
Safety Features: Incorporates safety features to protect the unit and users.
User-Friendly Interface: Intuitive control panel for easy operation.
Customizable Settings: Allows for customization of various parameters to suit specific needs.

By combining these features, the BEAM380W offers a powerful and versatile lighting solution for a wide range of applications.

Application	Description
Outdoor Events	Ideal for festivals, concerts, and other outdoor gatherings.
Live Performances	Suitable for concerts, theater productions, and live shows.
Architectural Lighting	Illuminating buildings, landmarks, and monuments.
Sports Venues	Used in stadiums, arenas, and other sports facilities.
Theme Parks	Perfect for creating immersive experiences in theme parks.
Entertainment Venues	Ideal for nightclubs, bars, and other entertainment venues.
Rental Services	Suitable for rental companies to provide lighting solutions for various events.

FAQ

Q: What is the primary purpose of the AVQ BEAM380W Professional Moving Head Light?

A: The BEAM380W is designed for creating dynamic and impactful lighting effects in a variety of applications, including concerts, theater productions, and architectural lighting.

Q: Where can I use this light fixture?

A: This light fixture can be used in various settings such as concert venues, theaters, stadiums, theme parks, nightclubs, and for rental services.

Q: Is this light fixture suitable for outdoor use?

A: Yes, the BEAM380W is designed for both indoor and outdoor use, making it ideal for a wide range of applications.

Q: What types of effects can I create with this light fixture?

A: With its various gobos, colors, and prisms, the BEAM380W can create a wide range of effects, including beams, washes, and aerial effects.

Q: How is this light fixture controlled?

A: The BEAM380W can be controlled via DMX512 and RDM protocols, allowing for seamless integration into lighting systems.
