Product Description:
Light source: Philips MSD 5R
Light output lens diameter: 140mm
Color temperature: 7800K
Illuminance at 15 meters can reach 121,000 lux at a beam angle of 2°
Excellent color macro effect
Colorful rainbow effect
Fixed pattern plate: 1 fixed pattern plate, 16 patterns plus 1 white circle
Color plate: 1 color plate, 14 fixed colors plus white, two-way rainbow effect
Equipped with 1 8-prism, 16-prism and tower mirror, 16-prism can be rotated and
superimposed with tower mirror or 8-prism in both directions
Beam angle: 2°
Independent atomization effect
Electric focus system
Outstanding strobe effect, variable speed
0-100% smooth dimming
No flicker under HD camera
Key Features:
Powerful Light Source: Uses a Philips MSD 5R lamp for a bright, focused beam.
Sharp Optics: Features an advanced optical system for clear image projection. The beam angle is 2°.
Simple Control: Offers four touch buttons and an LCD display for easy setup and operation.
Flexible Control Options: Supports DMX512 and RDM protocols for versatile control. It offers 12 or 15 DMX channel modes.
Easy Software Updates: Allows software updates via a DMX connection.
Precise Movement: Provides 540° pan and 270° tilt movement. Automatic position correction ensures accuracy.
Multiple Gobo Options: Includes a fixed gobo wheel with 16 patterns plus open.
Vibrant Colors: Features a color wheel with 14 fixed colors plus white. It creates a two-way rainbow effect.
Versatile Prism Effects: Offers an 8-facet prism, a 16-facet prism, and a tower mirror. These can be combined for complex effects.
Wide Voltage Compatibility: Accepts input voltage from 180-240V~ 50/60Hz.
Efficient Power Use: Consumes 300W of power.

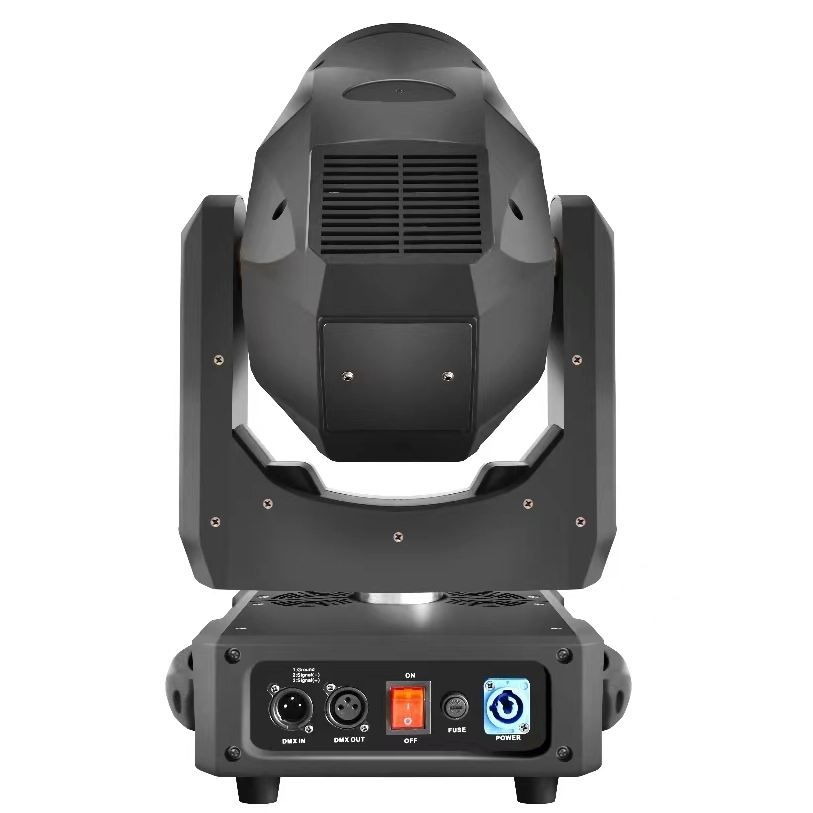

Standard Connections: Uses Power Connector In/Out for power and three-pin XLR connectors for signal.

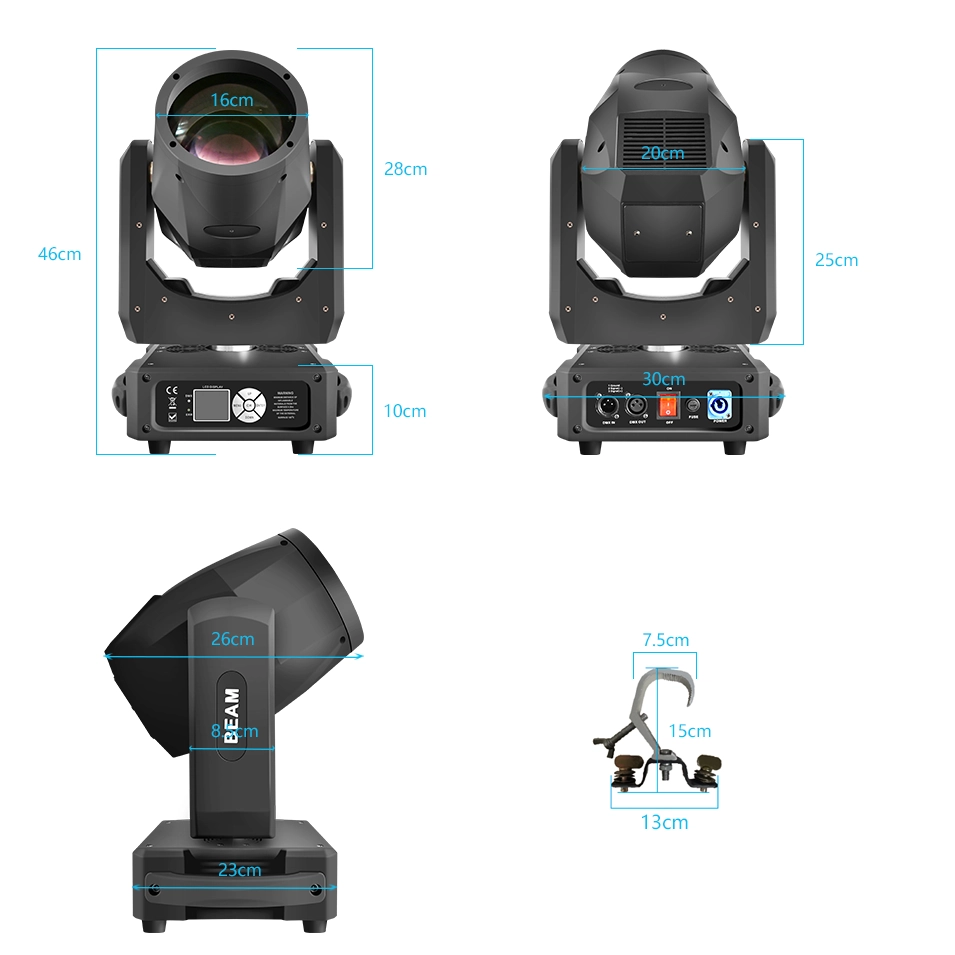

Compact and Portable: The fixture is relatively small and weighs 14.9 kg.
Flexible Installation: Can be installed horizontally or vertically. It includes quick lock hooks and keyholes.
Safety Features: Includes a safety rope connection point for secure rigging.
Complete Package: Comes with a manual, power cable, certificate, warranty card, and quick lock hooks.
Wide Operating Temperature Range: Functions in ambient temperatures from 0°C to 40°C.
application scenarios
Nightclubs and bars: Create dynamic lighting for dance floors and atmosphere.
Private parties and events: Provide exciting lighting for celebrations and gatherings.
Wedding receptions and ceremonies: Create atmosphere for romantic and festive occasions.
Theaters and auditoriums: Provide focused beams for stage lighting and performances.
Entertainment venues and clubs: Enhance the atmosphere of various entertainment venues.
Mobile DJ setups: Provide portable and versatile lighting solutions for mobile DJs.
Small and medium-sized concerts: Provide impactful lighting effects for musical performances.
Corporate events and presentations: Create visual interest for presentations and events.
FAQ:
Here are some frequently asked questions about the AVQLIGHT BEAM-200W Moving Head Light BEAM-5R:
Q: What is the light source of this fixture?
A: This fixture uses Philips MSD 5R lamps.
Q: What beam angle does it produce?
A: It produces a 2° beam angle.
Q: What control protocols does it support?
A: It supports DMX512 and RDM protocols.
Q: How many DMX channels can be used?
A: It offers 12 or 15 DMX channel modes.
Q: Does it have color mixing capabilities?
A: It has a color wheel with 14 fixed colors plus white and a two-way rainbow effect.
Q: What prism effects are there?
A: It includes an 8-facet prism, a 16-facet prism, and a tower mirror that can be combined.
Q: What is the power consumption?
A: The power consumption is 300W.
