Versatility is King: PAR (Parabolic Aluminized Reflector) lights remain the backbone of stage, studio, and architectural lighting due to their adaptability.
LED Efficiency: Modern fixtures, like the AVQLIGHT Retro-PAR MINI LED-120FG, offer massive energy savings (120W consumption) compared to traditional tungsten cans without sacrificing output (>4500lm).
Environmental Durability: For outdoor events, an IP Rating of 65 is non-negotiable to withstand rain and dust.
Control Precision: Utilizing DMX512 protocols allows for complex dimming curves (8 & 16 Bit) and pixel mapping.
Atmosphere Creation: Color temperature matters. A warm 1800K creates intimacy, while higher CCTs provide clinical brightness.
Lighting defines the emotion of a space. It transforms a sterile stage into a breathing entity. Whether you are a touring engineer or a venue owner, the humble PAR light is likely the most critical tool in your arsenal. It is the workhorse of the industry, providing everything from general Wash Lighting to punchy accents.
We have seen trends come and go, but the PAR can remains constant. However, the technology inside the housing has shifted dramatically. We are no longer just pushing voltage through a filament; we are managing sophisticated electronics that require a deep understanding of optics and data protocols.
At its heart, a PAR light is a sealed beam lamp (or LED array) in a simple housing. The magic lies in the Beam Angle and intensity. Traditional cans relied on changing the physical bulb to alter the spread (MFL, WFL, NSP). Today, optics systems do the heavy lifting.
In our testing of modern fixtures, we look closely at the Lux Output and the quality of the field. A good PAR light shouldn't just be bright; it needs to be consistent. You don't want hot spots in the center and weak edges. You want a field that allows for smooth blending when fixtures are placed side-by-side.
The debate between halogen and LED is effectively over for most applications. While some purists chase the drift of a dimming tungsten filament, modern LEDs have bridged that gap.
Thermal Management is the biggest differentiator. Old 1000W PAR64s were essentially heaters that produced light as a byproduct. In contrast, modern fixtures utilize RGBW LEDs or specialized warm white chips to produce comparable output with a fraction of the heat. This protects your gels, your performers, and your HVAC bill. Furthermore, Flicker-Free Operation is standard in high-quality LEDs, a requirement for anyone broadcasting or recording video.
Reading a spec sheet can feel like deciphering a foreign language if you don't know what to look for. Here are the metrics that actually impact your show:
Color Temperature (CCT): Measured in Kelvin. Lower numbers (1800K) are warm/orange; higher numbers (6000K+) are cool/blue.
CRI (Color Rendering Index): How accurately the light reveals colors. High CRI is vital for skin tones.
IP Rating: IP20 is for indoors. IP65 means it can handle a rainstorm.
Dimmer Curve: 16-bit dimming ensures the fade to zero is smooth, not steppy.
To understand what makes a "Pro" fixture, let's look at a specific example we recently handled: the AVQLIGHT Retro-PAR MINI LED-120FG. This unit is fascinating because it merges the aesthetic of a vintage blinder with modern tech.
During setup, the first thing we noticed was the build. At 3.4kg, it is substantial enough to feel rugged but light enough for one person to rig multiple units quickly. It uses 28 x 3W 1800K LEDs. This specific configuration is designed to replicate that classic "tungsten" glow—perfect for creating a cozy, retro atmosphere without the fire hazard of real tungsten.
Here is the data breakdown for this unit:
| Parameter | Specification |
|---|---|
| Model | AVQLIGHT Retro-PAR MINI LED-120FG |
| Light Source | 28 x 3W LEDs (1800K Warm White) |
| Luminous Flux | >4,500lm |
| Beam Angle | 75° (Wide Wash) |
| Power Consumption | 120W |
| IP Rating | IP65 (Outdoor Ready) |
| Control Protocols | DMX, RDM, Auto, Master-slave |
| DMX Channels | 1 / 6 CH |
| Working Temp | -30° ~ 70°C |
Why this matters: The 75° Field Angle effectively turns this into a blinder or a massive wash light. It fills space. We also appreciate the IP65 rating. We have seen too many "indoor" lights fail because of a spilled drink or a humidity spike. This unit works from -30°C to 70°C, meaning it survives winter festivals and summer raves alike.
Let's talk money. The AVQLIGHT Retro-PAR pulls 120W. A traditional equivalent pulls 1000W. If you run a rig of 20 lights for a 4-hour show:
Traditional: 80 kWh
AVQLIGHT: 9.6 kWh
The electricity savings are massive over a year. Additionally, the Power Link feature (3 x 1.0 PG link) allows you to Daisy Chain power, reducing cabling requirements and setup time. Time is money in production.

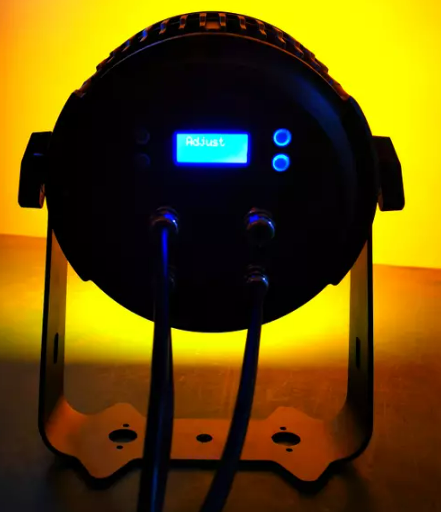

Don't just point and shoot. Use the Strobe Plus effect found in the Retro-PAR to add energy to a DJ set. Because the unit supports RDM (Remote Device Management), you can change the DMX address remotely without climbing a ladder—a lifesaver during crunch time.
For architectural work, the 1800K temperature of the AVQLIGHT unit is ideal for highlighting stone or brick textures, giving buildings a historic, inviting feel.
Control is where the show happens. This unit supports DMX512 via 3 or 5pin DMX links. Using the 6-channel mode gives you granular control over the dimmer and strobe speed.
Stand-Alone Mode: Great for quick setups where no console is available.
Master-Slave: Link one "Master" unit to several "Slaves" via DMX cable. They will all mimic the first unit perfectly.
Even the best gear needs care. The Retro-PAR MINI is fanless (silent operation), which means fewer moving parts to break. However, you must keep the cooling fins clean.
Troubleshooting Tips:
No Light? Check the Power Link connections and fuse.
Flickering? Ensure your DMX chain is terminated properly.
Wrong Colors/Dimming? Verify you are in the correct DMX mode (1 vs 6 channel).
Accessories: Always consider a Flying case (8 in 1 or 10 in 1 options available) for touring. It protects the High efficiency optic system during transport.
We are moving toward higher efficiency and better color blending. While the Retro-PAR focuses on a specific warm vintage look, the industry is also pushing toward full-spectrum engines that can replicate any CRI on demand. Yet, the demand for that "retro" look remains high because it feels human. Digital is clean; analog (or analog-emulation) is emotional.
Choosing the right light is about matching specs to emotion. Whether you need the clinical precision of a studio light or the warm, >4500lm embrace of the AVQLIGHT Retro-PAR MINI LED-120FG, understanding the data ensures your stage looks exactly how you imagined it. The right light doesn't just illuminate the performer; it connects them to the audience.
Q: What is the difference between a PAR light and a Flood light? A: A PAR light usually has a more controlled beam (though wide angles like 75° exist), whereas a floodlight sprays light everywhere with little control. PARs are better for stages; floods are better for work lights or security.
Q: Can I use the AVQLIGHT Retro-PAR outdoors? A: Yes. It has an IP Rating of 65, making it dust-tight and protected against water jets. It is designed for working conditions between -30° and 70°C.
Q: Does this light require a DMX controller? A: No. While DMX offers the best control, the unit features Auto and Master-slave modes for plug-and-play operation without a console.
Q: What does "1800K" mean for lighting? A: This refers to the Color Temperature. 1800K is very warm, similar to candlelight or vintage tungsten bulbs. It creates a cozy, "retro" atmosphere.
Q: How many of these units can I link together? A: You can power link multiple units using the Power Link cables. Always check the total amperage of your circuit against the 120W consumption per unit to avoid tripping breakers.
