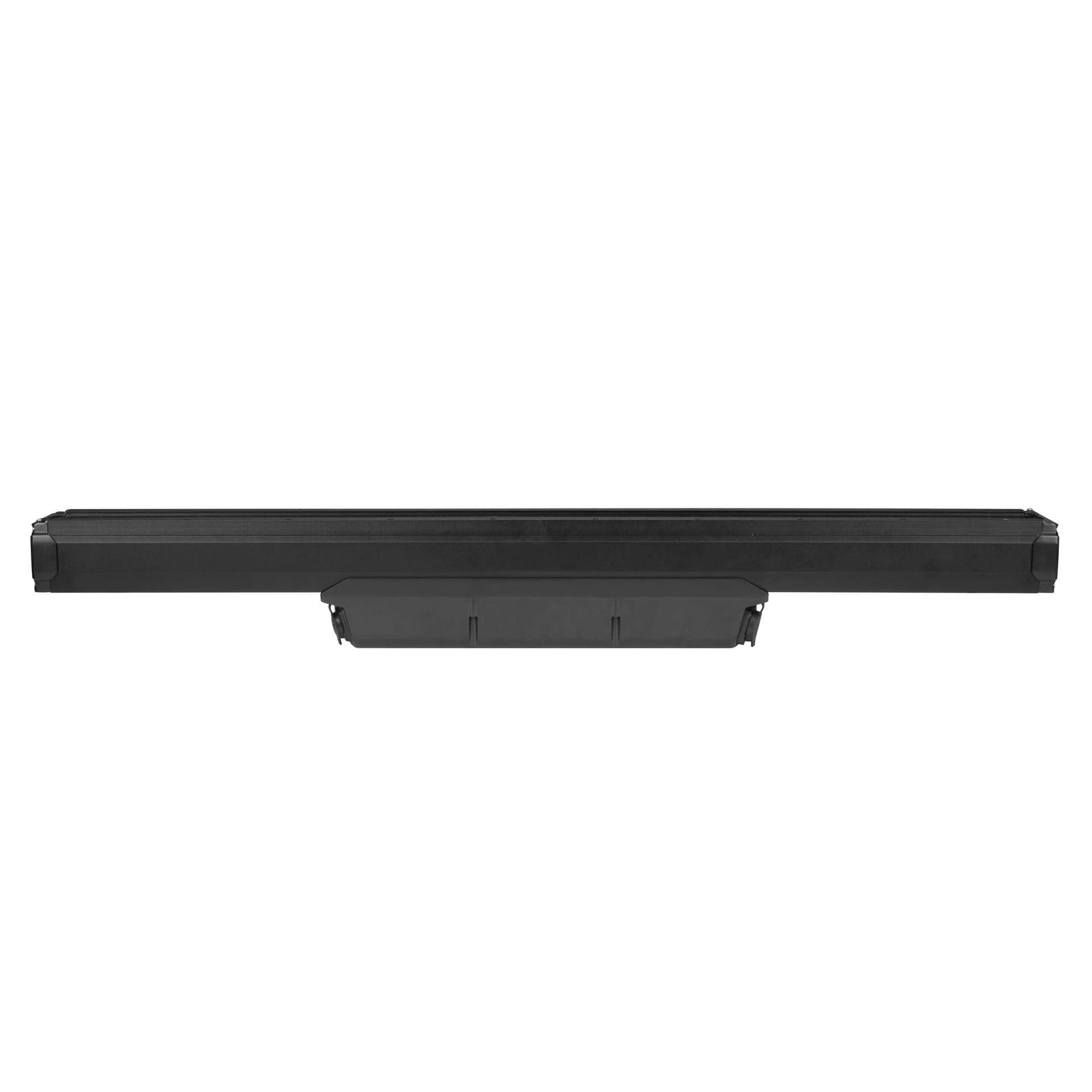

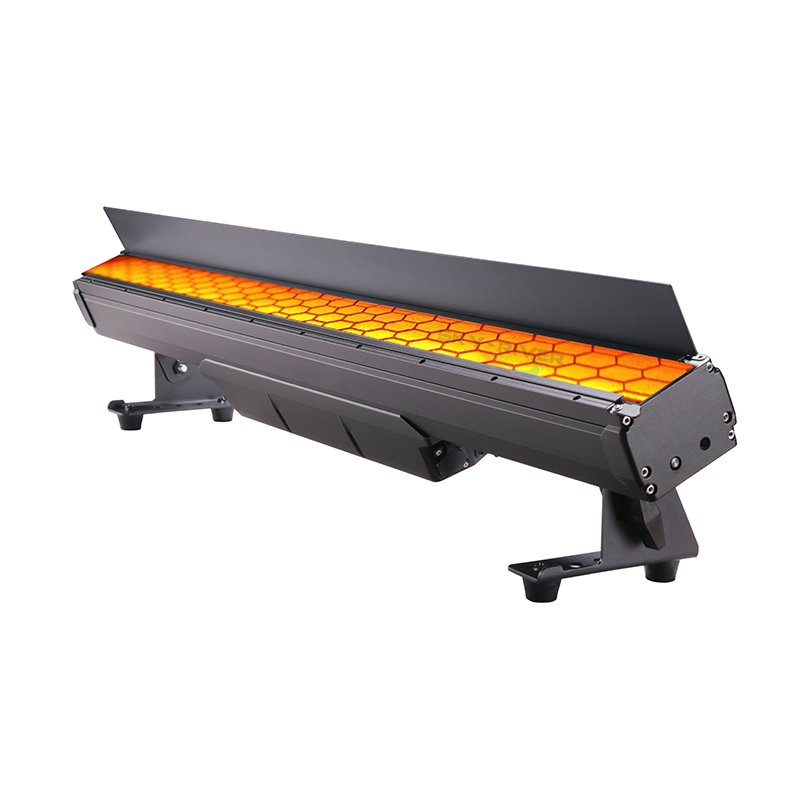

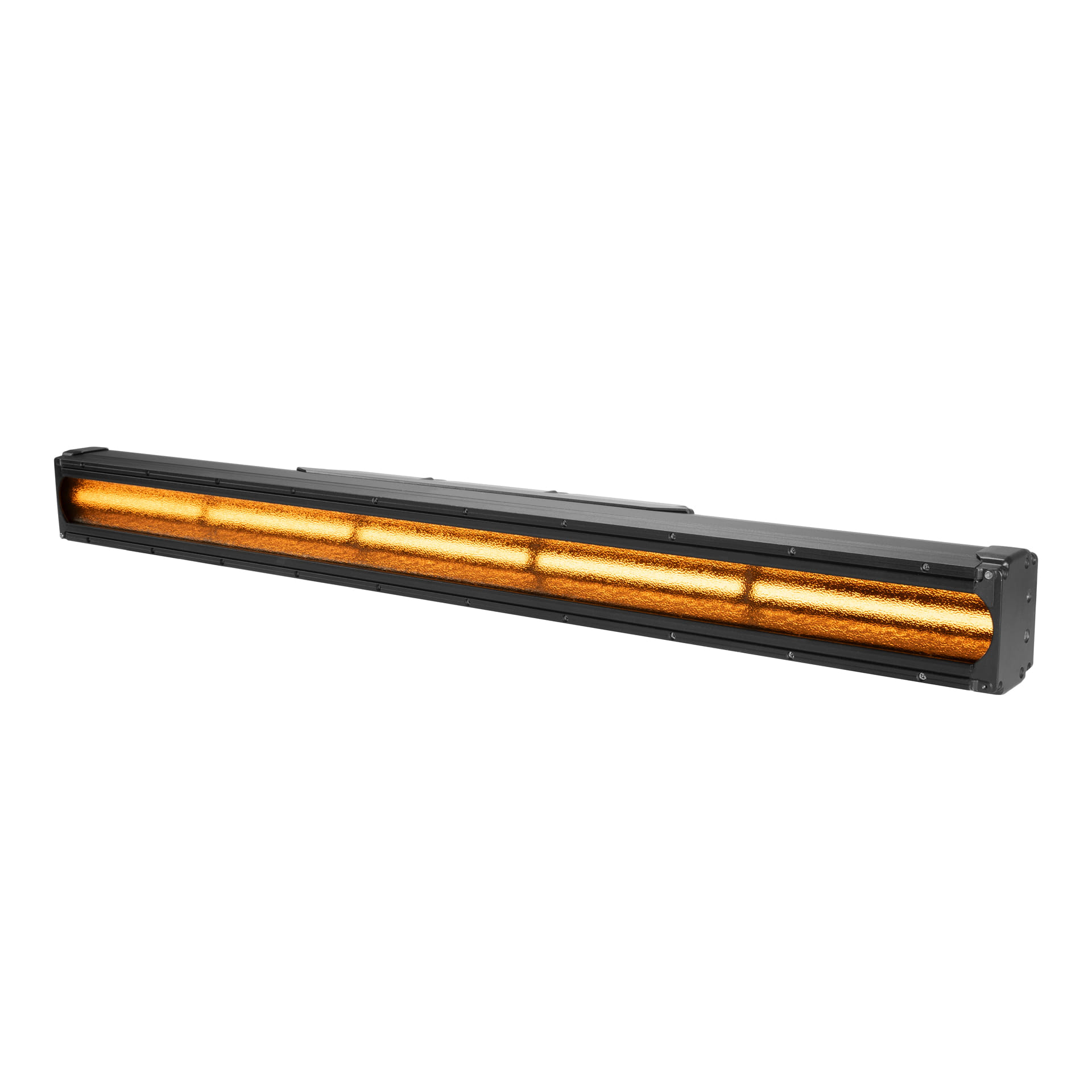

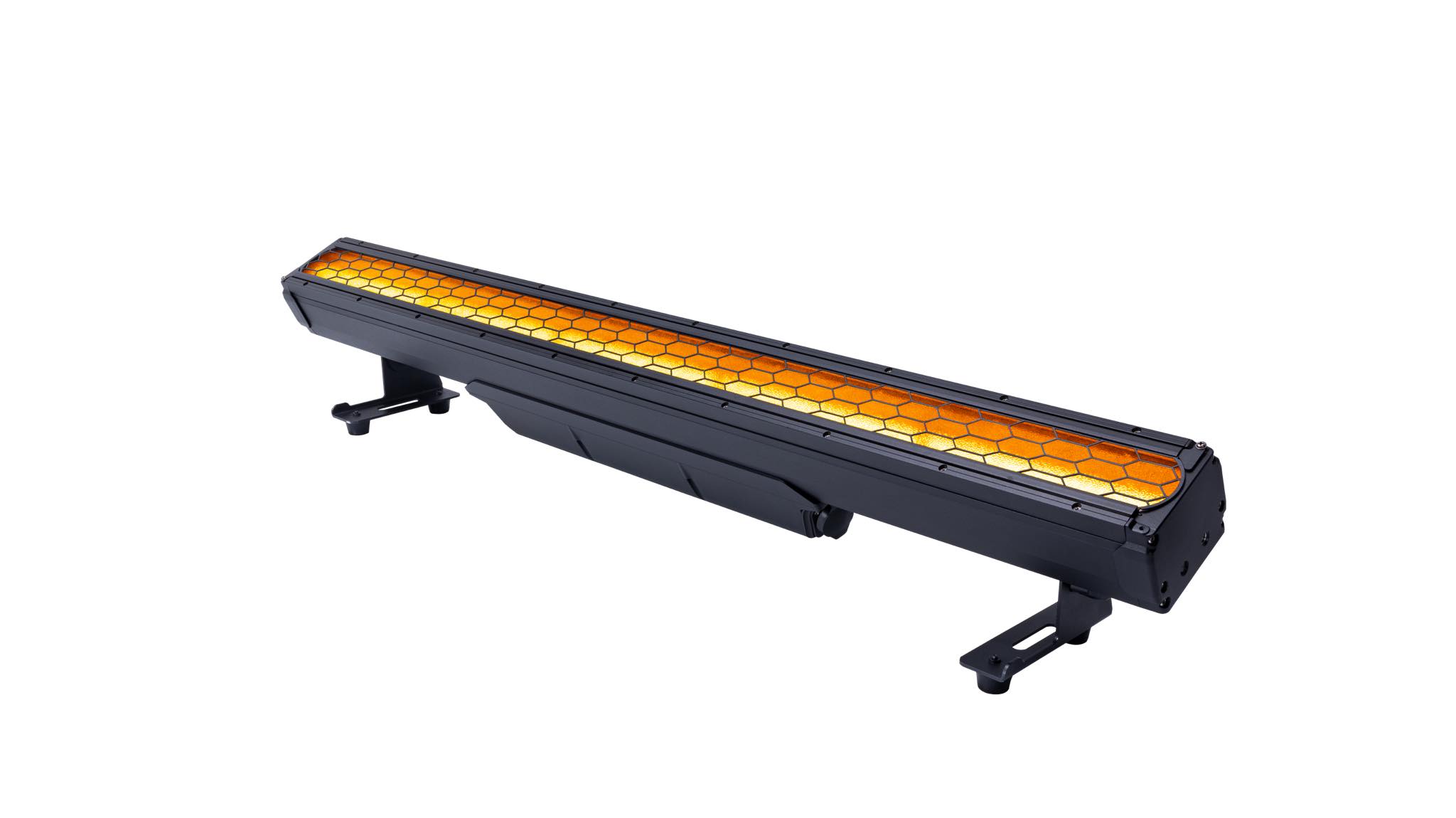

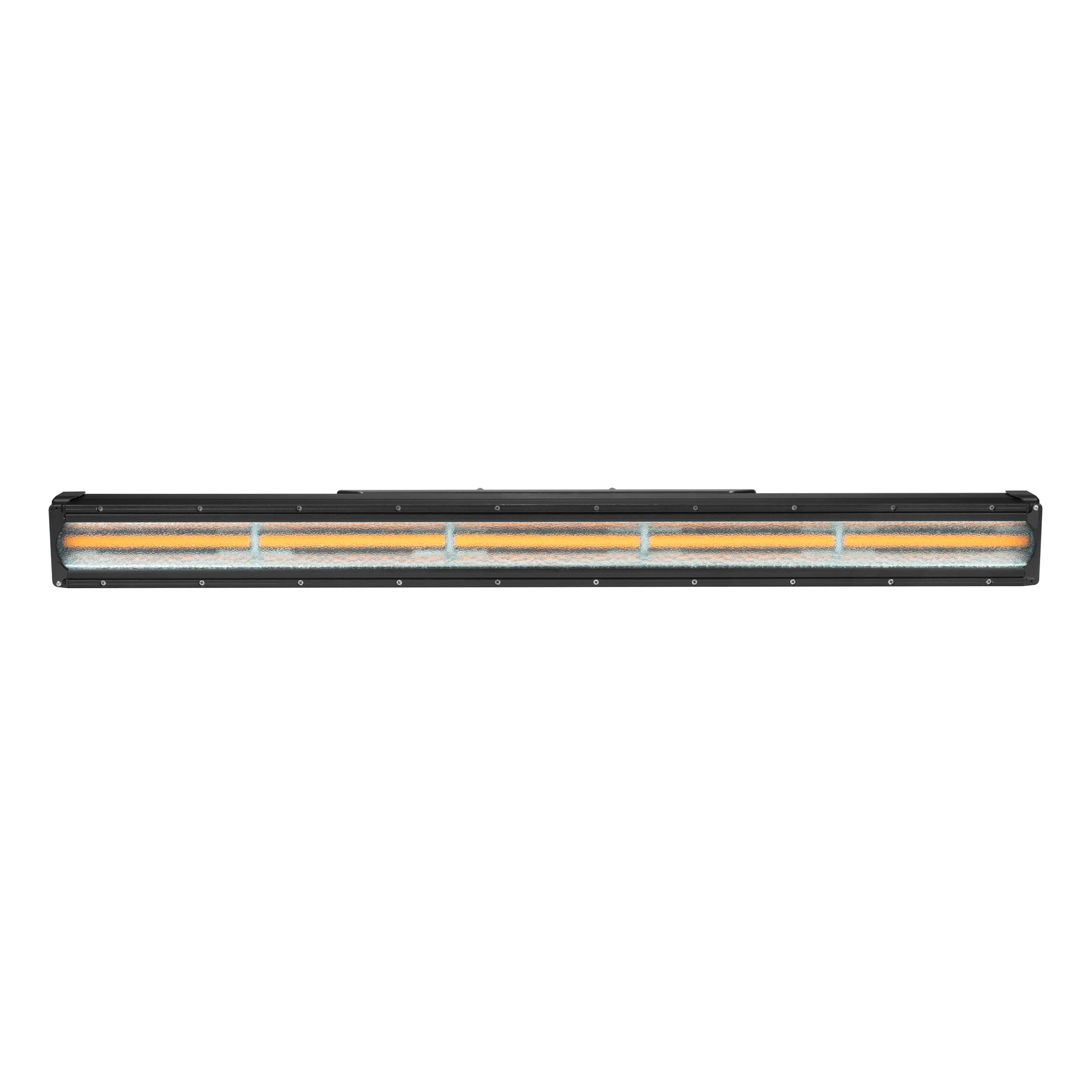

Retro Stage Lights-360E
AVQ
Retro Stage Lights-360E
R-360E™
360W 1800K Simulation tungsten linebar,
the light very beautiful,
rare high-power,
optional PMMA froster & cover,
Barndoor and more.
R-360E™
OVERVIEW
5.RGB+Amber Pixel control
Madrix mapping
360W powerful
Simulation tungsten effect
Free light connection
Textured glass
R-360E™
SPECIFICATION
Power supply 100-240V - 50/60Hz
Power consumption 400W, PFC: 99%
LED source 50W x 5 1800K, 200 x 1.5W RGB,
Luminous flux >18000lm
Field angle 90°
Optic High efficiency optic system
Special feature Invert lighting
User color
Free lightCON
Software update
Dimmer mode 8 & 16 Bit
DMX mode 14 / 20 / 28 / 36CH
Control mode DMX, Auto, Master-slave
Protocol DMX, RDM
Light style Lighting strobe plus
5.Amber & RGB can be controlled individually
Dynamic patterns
IP rating 65
Working Condition -30° ~ 70°C
Power & DMX link - PowerCON True1 in & out
- 3 or 5pin DMX in & out
Box Info - Carton: 1 in 1
- Case: 4 in 1 / 8 in 1
Size(mm) - L1004 x W96 x H130（Bracket H178)
- 1330 x 290 x 200
Weight(kg) - Net Weight: 9.5 (Gross 2in1 22.5)
- Case Weight: Customized
Optional Accessories - Flying case
- Clamp
- Barndoor
- PMMA froster, PMMA cover
- Stand & Hang components
- Stand Plate
- P-Engine
