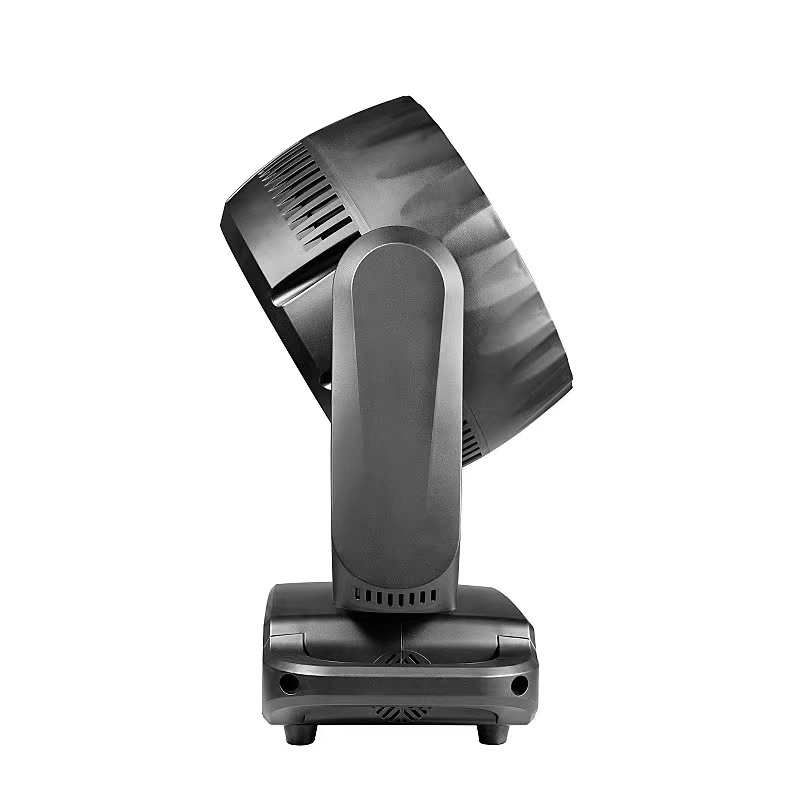

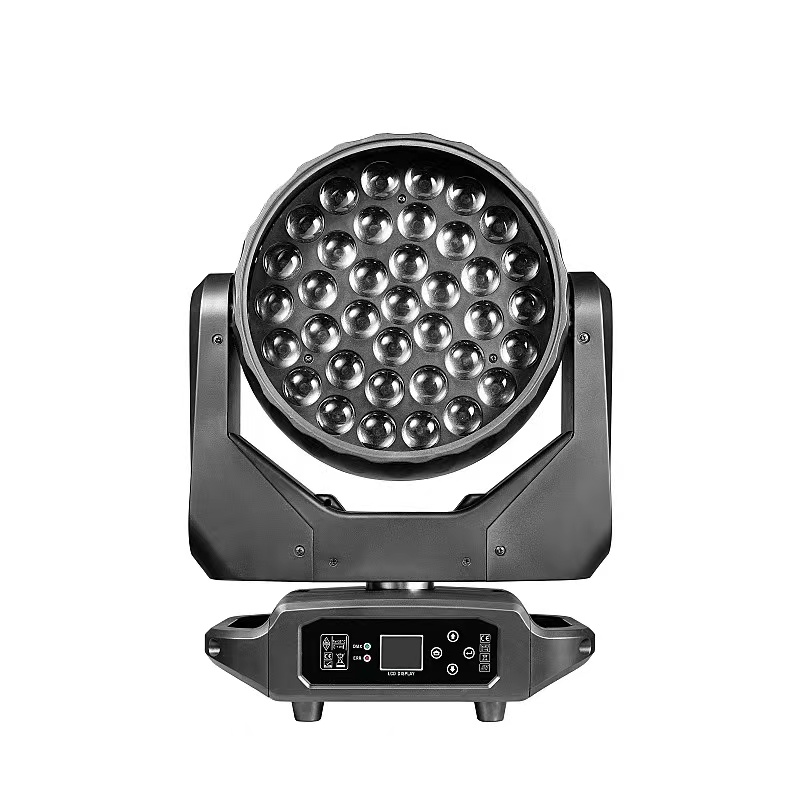

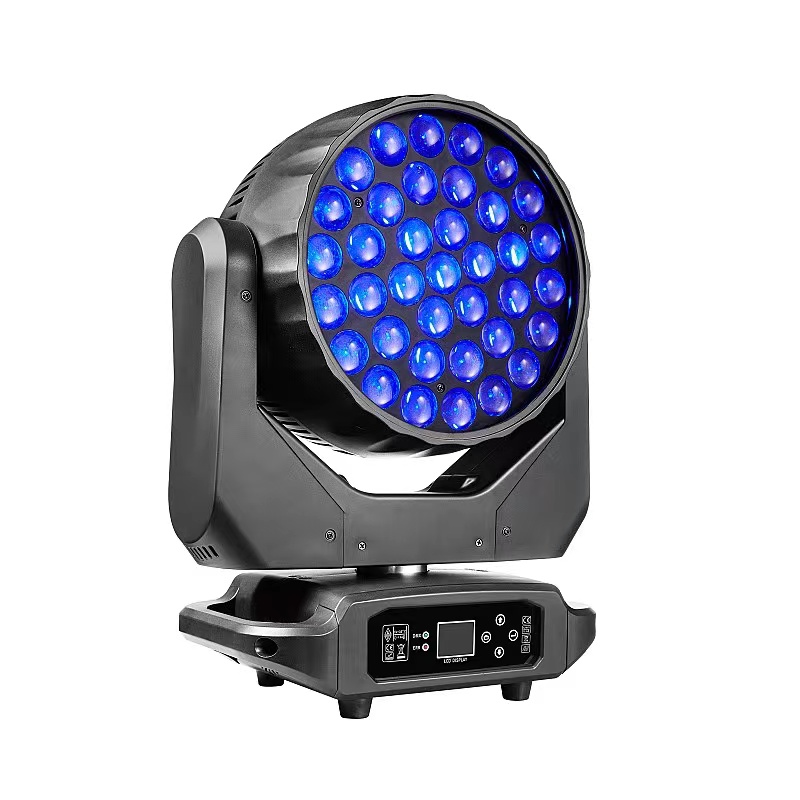

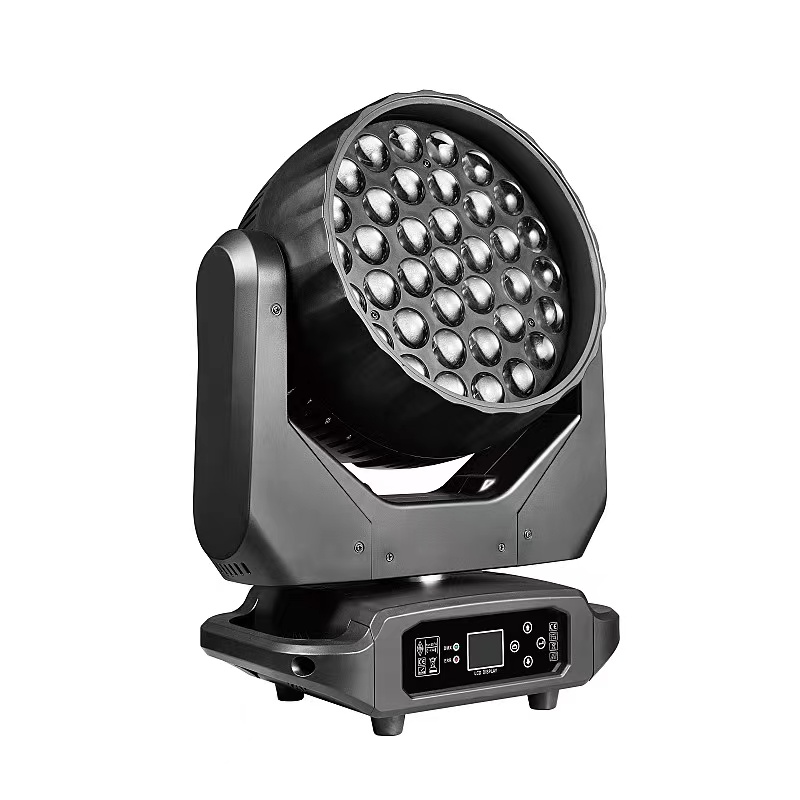

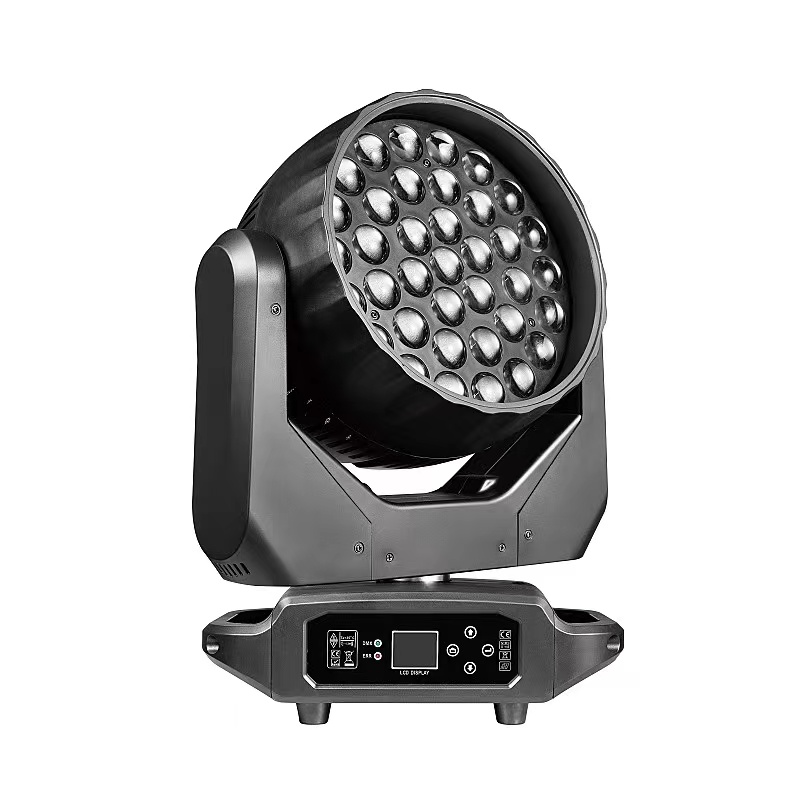

LED-3715
AVQLIGHT
Instruction manual in Chinese
Thank you for using the product produced by our company. For your safe and effective use of this product, please read this manual carefully and completely before you use this product. This manual contains: the special description of the performance of the product and how to install it safely, as well as important information on the use. Please keep it properly for reference when using it. Please strictly follow the relevant instructions when installing and using.
Technical parameters:
Power supply: AC90V-240V
Frequency: 50Hz-60Hz
Power: 800 W
Lamp power: 15 W * 37 PCS
Color temperature: 7000 K
Average life: 50000H
Control signal: international standard DMX512
Appearance: high temperature resistant plastic + molded alloy material
Lamp body color: black
Protection class: IP20
Net Weight 13.KG
Function introduction:
1. International standard control signal: DMX512
2. Number of Daotong: 16CH/36CH.
3.Number of motors: 3 silent motors XY 3-phase motors in total
4. LCD 650,000 color touch TFT interface, easy to operate, beautiful interface, interface can be 180 degrees reverse display.
5. X-axis horizontal rotation 540 ℃, Y-axis vertical rotation 270 ℃, with automatic correction and positioning.
6. The X and Y axes can be adjusted and fine-tuned. The software has the function of correction and positioning, with high precision!
7. Dimming: 0-100% linear regulation.
8. Strobe: Strobe speed (1-30 times/second), full linear dimming and variable strobe speed.
9. Focusing: With optical combination, the effect is far better than the usual dyeing lamp, which can project high-definition effect.
10.Overheat intelligent protection
11. Intelligent dimming control (to extend the service life of the light source)
Connection of DMX512 signal:

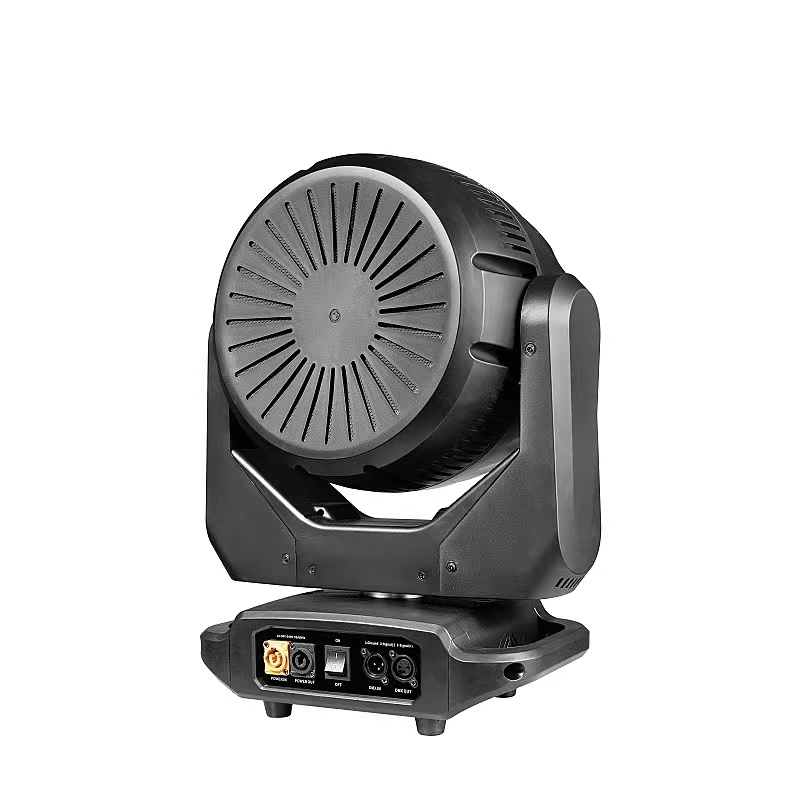

This lamp uses the DMX512 signal control mode, and the control signals of each lamp are in parallel. When connecting the signals of multiple lamps, it is better to use a dual-core shielded cable. During connection, all lamps shall be connected through the DMX signal Jack (card holder) INPUT and OUTPUT on the lamp. The 3-core XLRXL plug terminals of the signal line connecting the lamp must correspond to each other. When connecting the lamp signal, it is recommended to use the DMX signal terminator. To avoid damaging the control signal due to electrical noise, the DMX signal terminator is a 120 ohm 1 W resistor connected between pins 2 and 3 of an XLR plug and connected to the OUTPUT socket of the last lamp.
