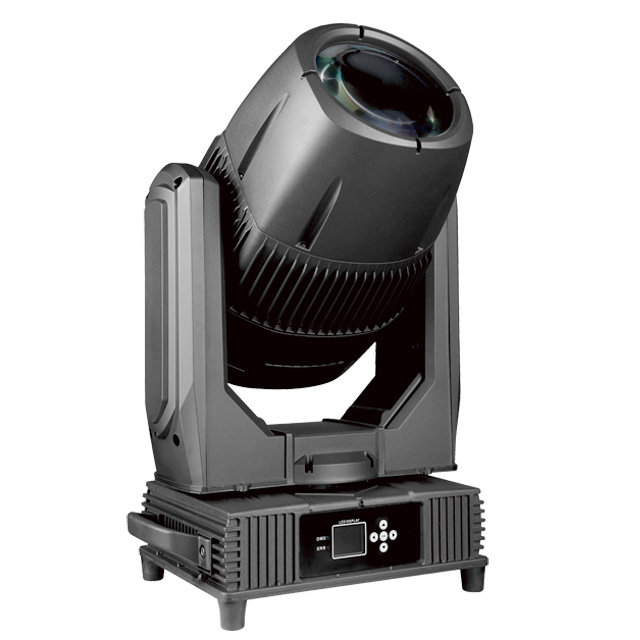

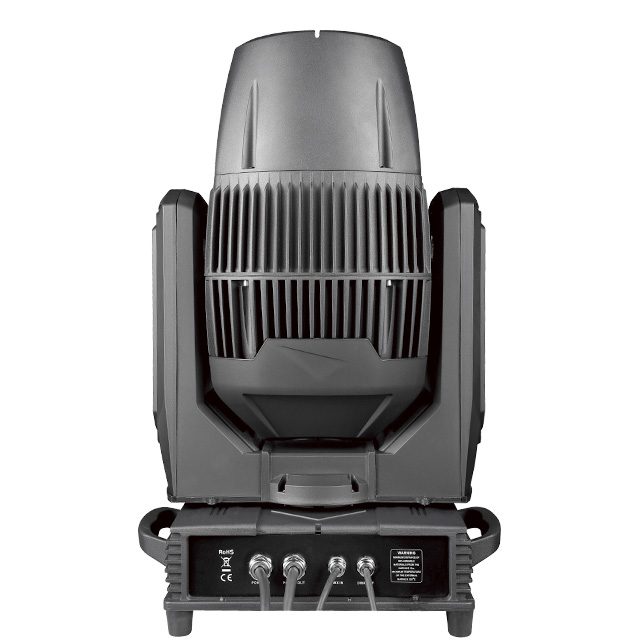

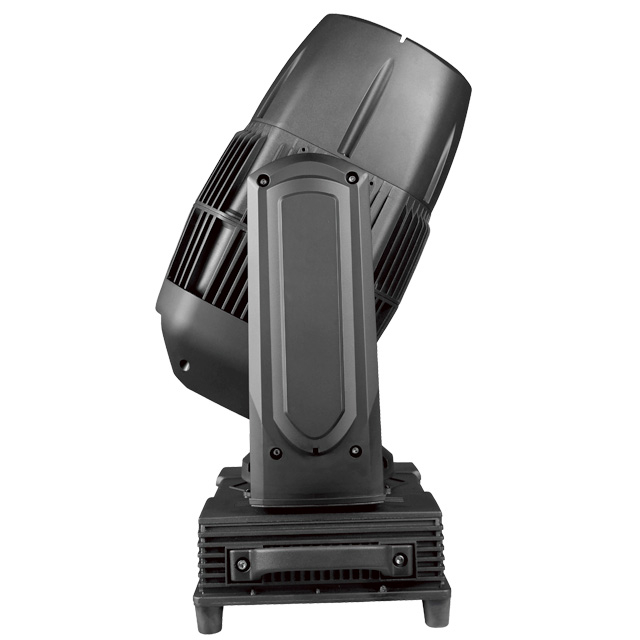

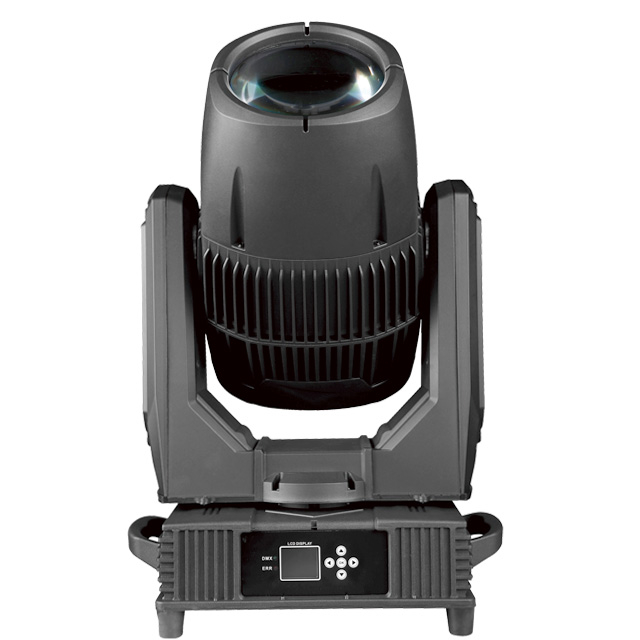

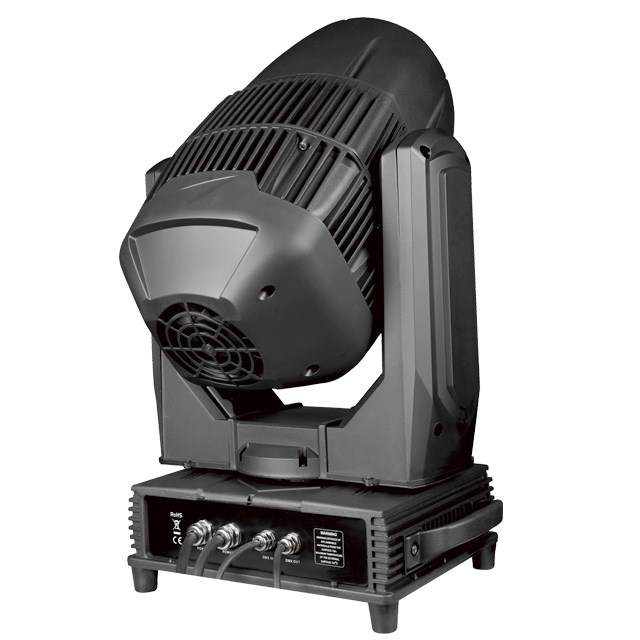

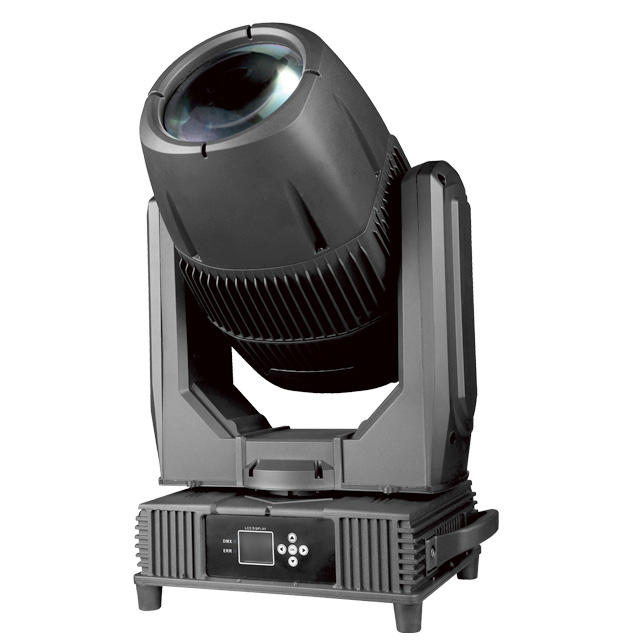

Outdoor waterproof380 metal housing
AVQLIGHT
1. Wide voltage: AC90V-235V 50-60Hz
2. Wide voltage driving power supply: 800W
3. Light source system: 420 (Philips)
4. Color temperature; 7900±500K
5. Color system: Color plate: 14+ colorful rainbow effect + atomization function
6. Pattern system: Pattern plate: 17 fixed patterns + 1 white light
7. Focusing system: Electronic focusing
8. Atomization; With atomization function, soft light effect can be achieved
9. Strobe; Dual motor independent strobe effect, 0.5-20 times/second, adjustable speed
10. Motor: XY axis uses three-phase motor, which makes the speed of the lamp highly stable and the positioning angle accurate!
11. Dimming curve: 0%-100% linear dimming, smooth and flicker-free
12. Beam angle: 0-2°
13. Dual channels: 16 channels or 20 channels
14. Lens diameter: 165mm
15. Waterproof grade: IP66
16. Control mode 1: DMX 512, self-propelled, master-slave self-propelled, RDM function, can use large controller to control remote setting of address code.
17. Prism system: 8 prisms and (8+16) prisms (prisms can be configured according to customer requirements).
18. Display screen: LCD display screen, adapt to different installation positions, can rotate 180°
19. Horizontal and vertical: use high-precision three-phase motor, accurate positioning, smooth operation, automatic positioning correction
20. Horizontal: 540° rotation, resolution 8/16Bit, with fine adjustment
21. Vertical: 270° rotation, resolution 8/16Bit, with fine adjustment
22. Cooling system: The heat dissipation of the lamp body plus the intelligent fan drainage cooling system, the air convection system method uses the software to analyze and calculate the heat flow of the lamp, quickly solve the internal heat of the body, extend the light decay time of the light source, ensure the service life of the bulb, and design a low-noise cooling system with excellent fan drive performance and extremely low noise.
23. Cast aluminum + outdoor engineering plastic shell
24. Installation method: upright/inverted
25. Lamp body size: 43*26*63cm
Net weight: 25KG, gross weight 29KG
Masterpiece: high-end appearance, huge energy, thick light column. The waterproof beam lamp has reached high standards in terms of optics, structure, appearance, etc. It adopts the most advanced technology, high-brightness light source, optical technology and rigorous industrial design to ensure the perfect presentation of lighting design.
